40 × 60 mm outline
40 × 60 mm
Published format without a verified KF-code mapping. [1]
RFID Keyfob · RFIDAK
Soft PVC RFID Keyfobs — Shape Catalog
Soft PVC RFID keyfobs support shaped branding and character-style designs. Five published outline references span 33 × 46 mm to 45 × 60 mm; the illustrated KF catalog remains available for choosing the actual artwork and silhouette.
Updated September 24, 2026
- Body
- Soft PVC reference
- Published outline examples
- 40 × 60, 49 × 37, 36 × 38, 33 × 46 and 45 × 60 mm
- RF choices
- LF or HF configurations; IC is selected separately from the design
Technical reference
Product specifications
Model-specific data and source scope are shown together.
Choose a reference
Models & configurations
Choose a model or format to include it in your quote or sample request.
49 × 37 mm outline
49 × 37 mm
Published format without a verified KF-code mapping. [2]
36 × 38 mm outline
36 × 38 mm
Published format without a verified KF-code mapping. [3]
33 × 46 mm outline
33 × 46 mm
Published format without a verified KF-code mapping. [4]
45 × 60 mm outline
45 × 60 mm
Published format without a verified KF-code mapping. [5]
Shape references
Mold catalog
Select an illustrated code. Published dimensional matches appear in the model table above; a photo alone is not a size drawing.
Appearance & construction

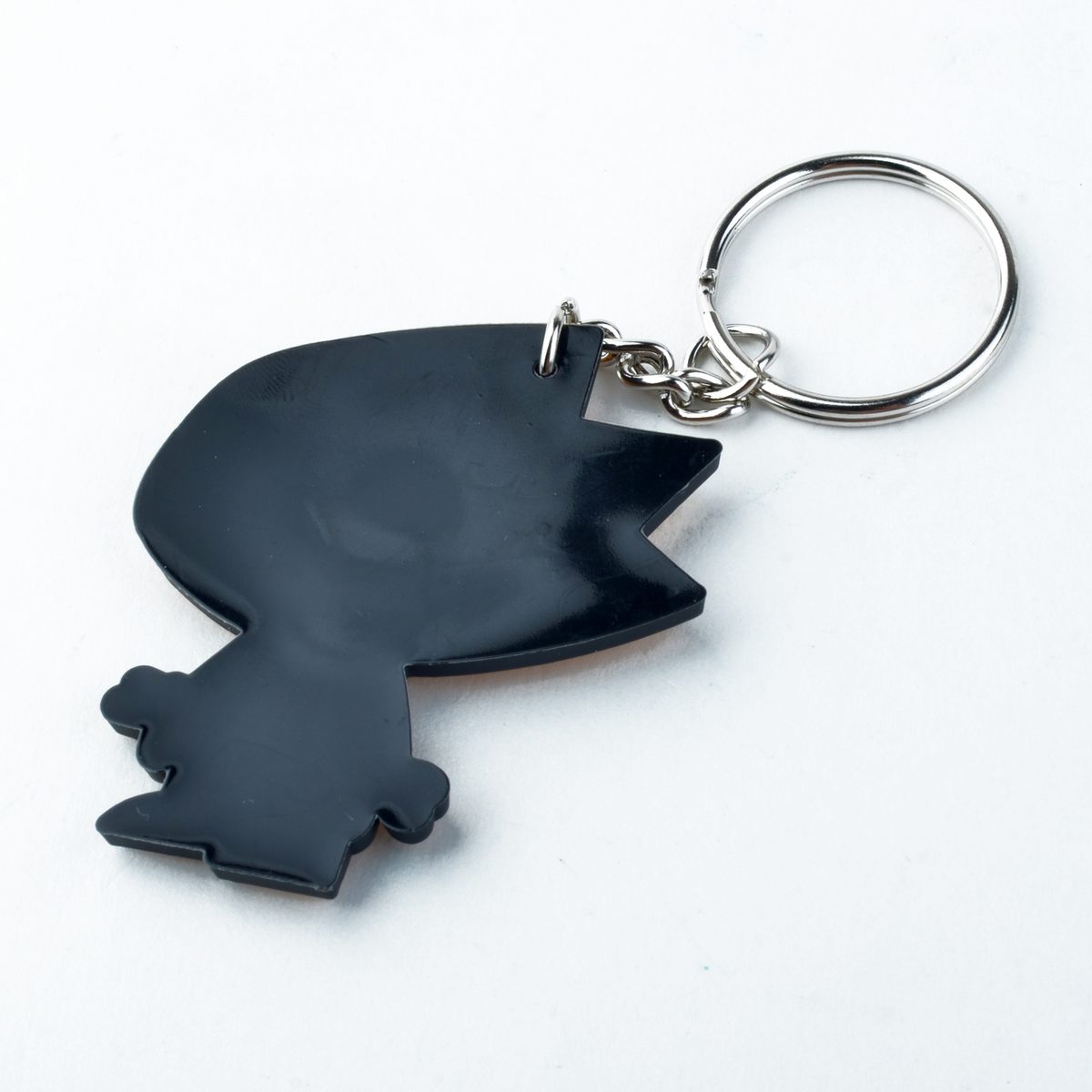

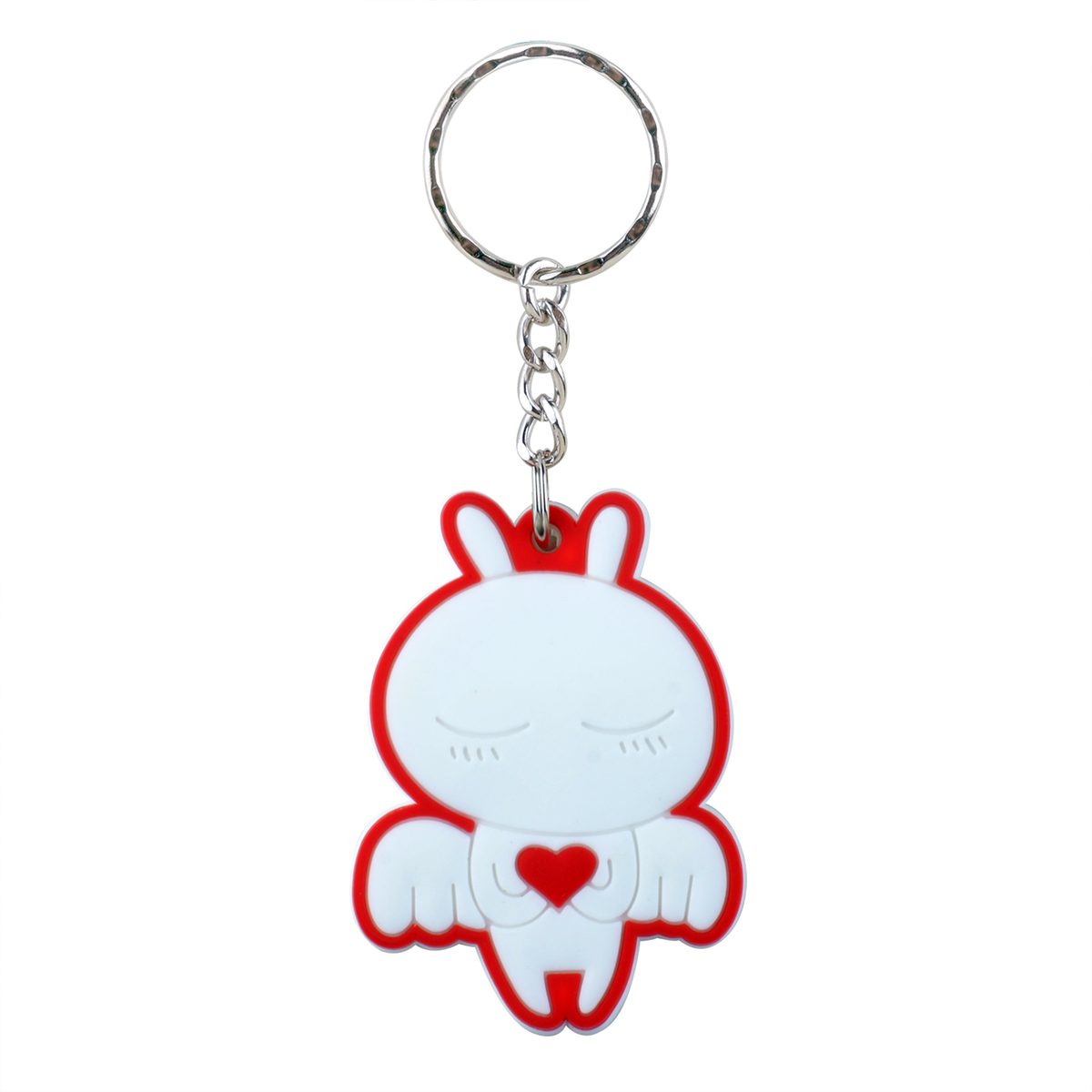

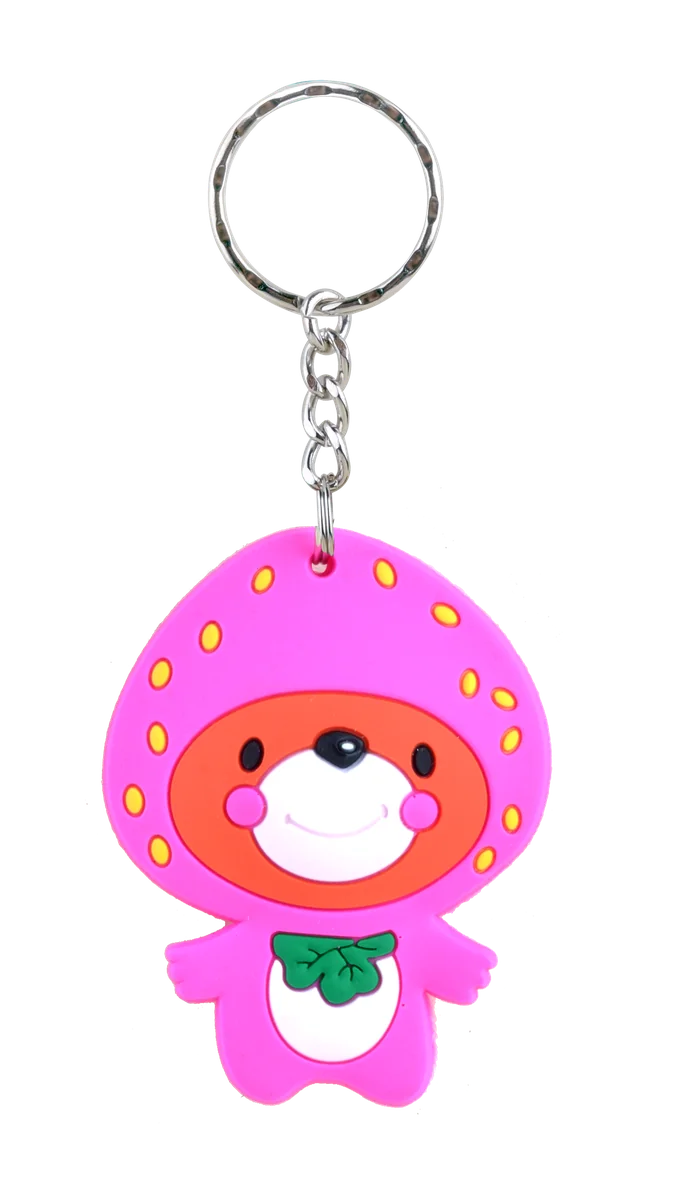

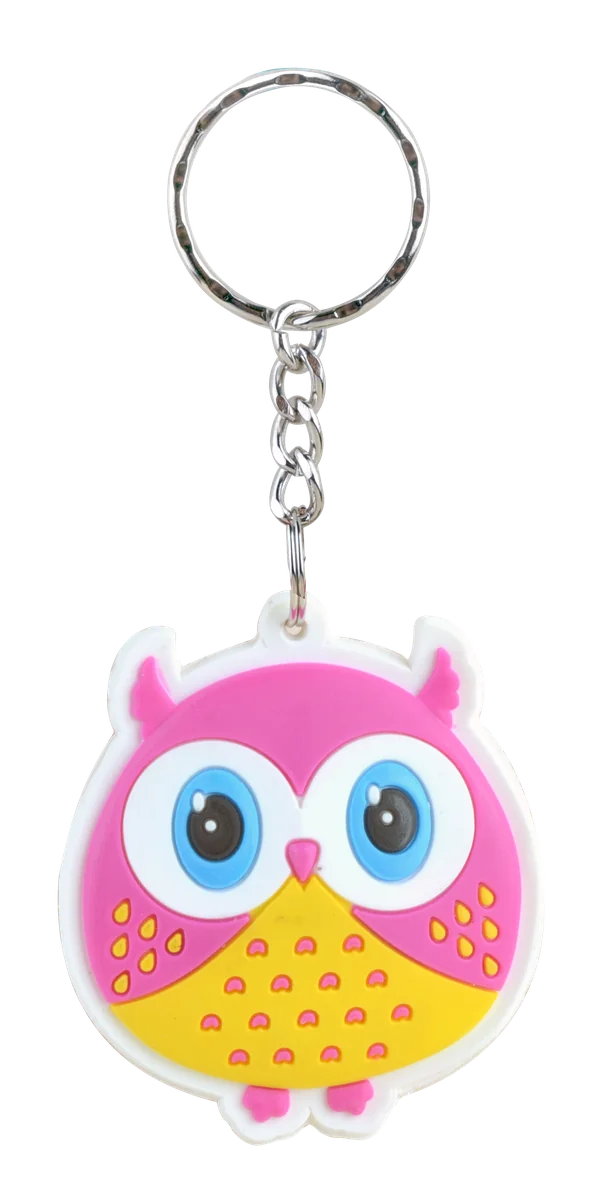

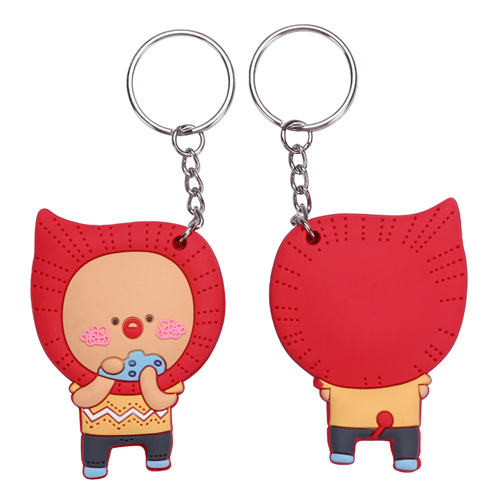

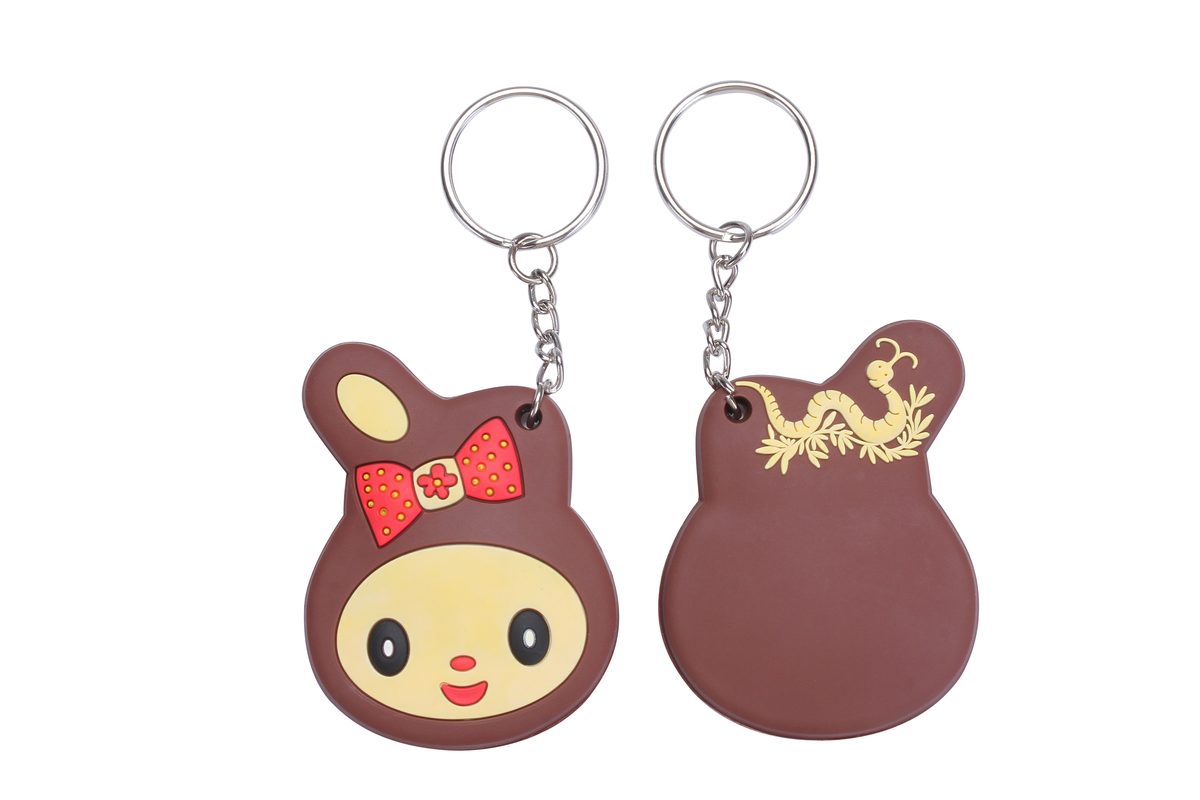

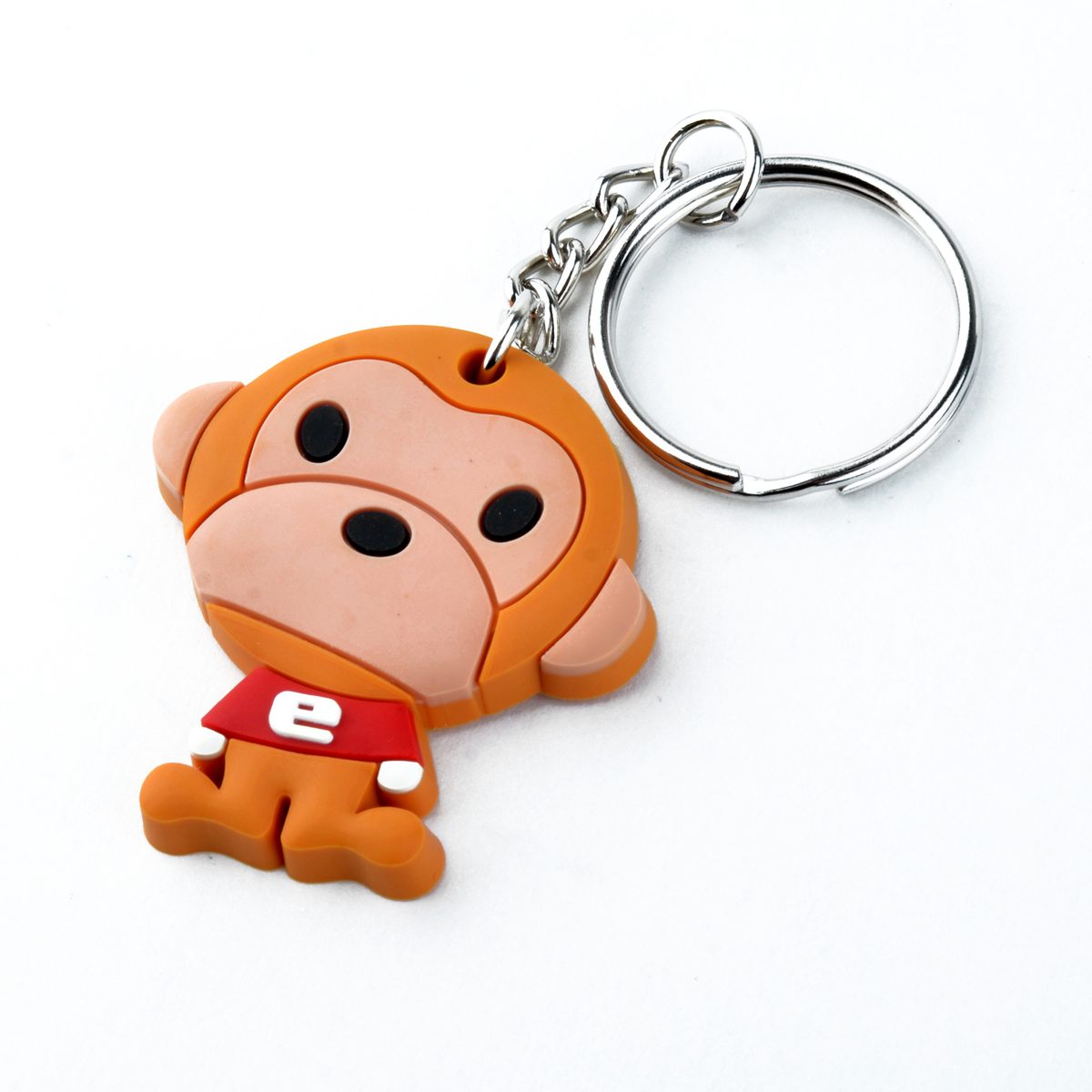

Photos & drawings
Open a picture to inspect the original file. Dimensions are taken from the cited references.
Application & selection
Before choosing this product
Why dimensions and KF pictures are separate
The dimension sources do not consistently identify the KF catalog code. The page therefore preserves the shape photographs without assigning another model’s dimensions to them. Send either a KF code or the explicitly named outline reference.
Artwork for a molded shape
Keep narrow protrusions, small text and the attachment opening compatible with the molding process. The approved artwork should identify the chip area so detail changes do not compromise the antenna.
Sources & documents
Technical references
Published specifications identify the reference model. They do not replace the final order drawing or a model-specific test report.
- 40 × 60 mm soft PVC reference ↗
Manufacturer reference · reviewed 2026-09-20
- 49 × 37 mm soft PVC reference ↗
Manufacturer reference · reviewed 2026-09-20
- 36 × 38 mm soft PVC reference ↗
Manufacturer reference · reviewed 2026-09-20
- 33 × 46 mm soft PVC reference ↗
Manufacturer reference · reviewed 2026-09-20
- 45 × 60 mm soft PVC reference ↗
Manufacturer reference · reviewed 2026-09-20
Custom orders & samples
Request your configuration
Choose the reference, then add quantity, destination, chip or reader details and any artwork on the enquiry page.
