Ø10 mm PPS disc
Ø10 × 2 mm
0.35 g published weight; fixing-hole and chip options follow model drawing. [1]
RFID Tags · RFIDAK
PPS RFID Laundry Buttons & Discs
PPS laundry transponders use a rigid disc or button body. The published general family includes Ø10–30 mm discs at 2 mm thickness; a separate UCODE 7/7M UHF model measures Ø18 × 2.8 mm.
Updated 2026-09-20
- Housing
- PPS
- General disc thickness
- 2 mm across the listed diameter references
- General chip configurations
- LF, HF or UHF; selected chip determines protocol
Technical reference
Product specifications
Model-specific data and source scope are shown together.
- Housing
- PPS [1]
- General disc thickness
- 2 mm across the listed diameter references [1]
- General chip configurations
- LF, HF or UHF; selected chip determines protocol [1]
- UHF button chip / bands
- UCODE 7 / 7M; 865–868 or 902–928 MHz reference [2]
- UHF button working / storage
- −25 to +110 °C / −40 to +120 °C [2]
- UHF button read example
- 0.4 m with Alien 9900 at 4 W EIRP; 0.1 m with Alien 9011, source test references [2]
Choose a reference
Models & configurations
Choose a model or format to include it in your quote or sample request.
Ø13 mm PPS disc
Ø13 × 2 mm
0.55 g published weight; fixing-hole and chip options follow model drawing. [1]
Ø15 mm PPS disc
Ø15 × 2 mm
0.7 g published weight; fixing-hole and chip options follow model drawing. [1]
Ø18 mm PPS disc
Ø18 × 2 mm
0.95 g published weight; fixing-hole and chip options follow model drawing. [1]
Ø20 mm PPS disc
Ø20 × 2 mm
1.2 g published weight; fixing-hole and chip options follow model drawing. [1]
Ø22 mm PPS disc
Ø22 × 2 mm
1.5 g published weight; fixing-hole and chip options follow model drawing. [1]
Ø24 mm PPS disc
Ø24 × 2 mm
1.7 g published weight; fixing-hole and chip options follow model drawing. [1]
Ø26 mm PPS disc
Ø26 × 2 mm
2 g published weight; fixing-hole and chip options follow model drawing. [1]
Ø28 mm PPS disc
Ø28 × 2 mm
2.4 g published weight; fixing-hole and chip options follow model drawing. [1]
Ø30 mm PPS disc
Ø30 × 2 mm
2.5 g published weight; fixing-hole and chip options follow model drawing. [1]
UHF Ø18 mm button
Ø18 × 2.8 mm
Separate UCODE 7/7M construction with its own temperature and reading conditions. [2]

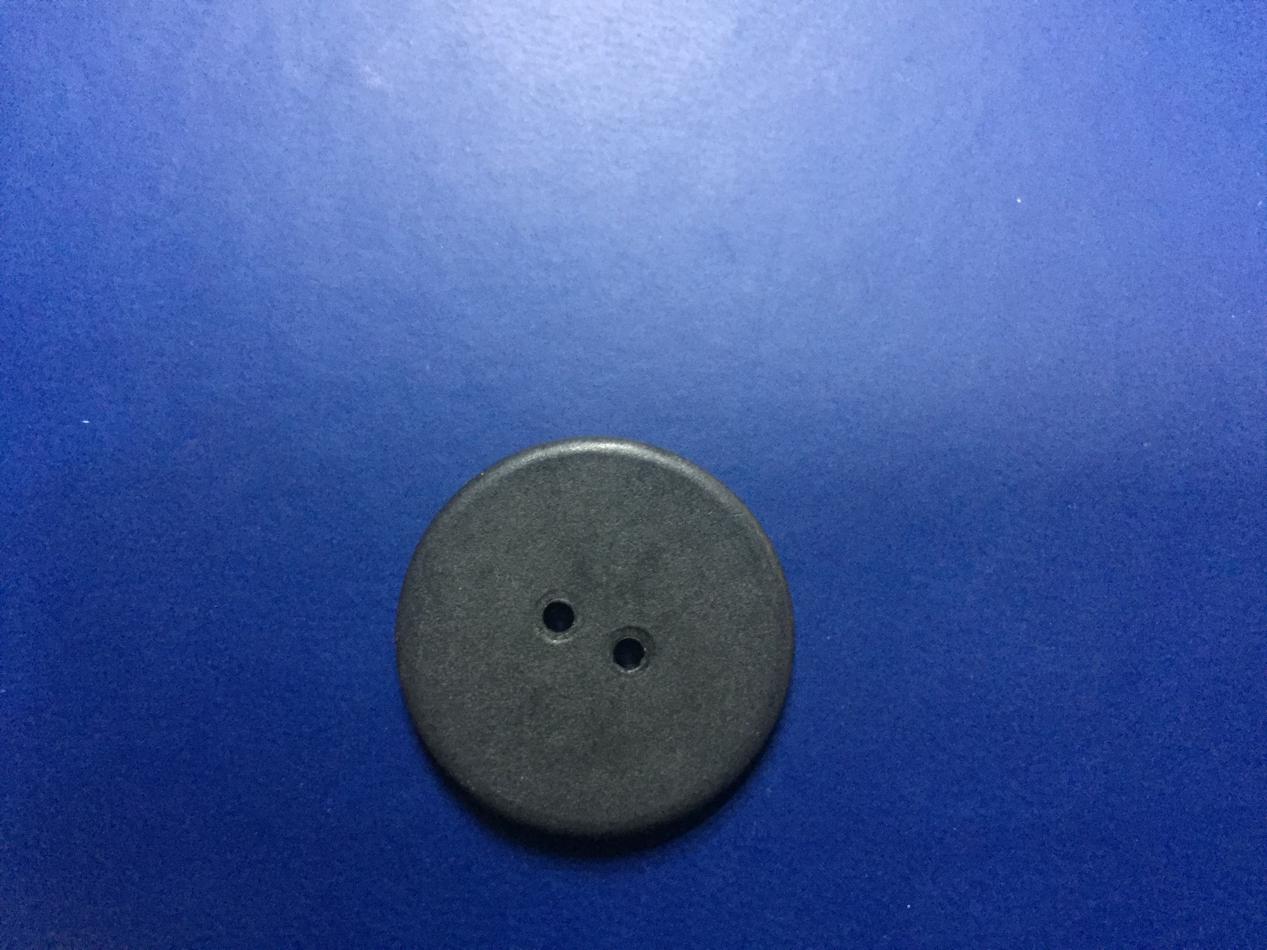

Appearance & construction
Photos & drawings
Open a picture to inspect the original file. Dimensions are taken from the cited references.
Application & selection
Before choosing this product
Do all discs have sewing holes?
No. A diameter table does not establish the number or position of holes. Choose a button drawing for sewing or an appropriate pocket/embedding method for a solid disc.
Does PPS mean autoclave approved?
No. The enclosure resin, seal, IC and repeated pressure/steam cycle all matter. The UHF model’s published operating limit is separate from an unspecified 200 °C claim elsewhere in the family catalog.
Sources & documents
Technical references
Published specifications identify the reference model. They do not replace the final order drawing or a model-specific test report.
- PPS diameter and weight table ↗
Manufacturer reference · reviewed 2026-09-20
- UHF PPS model table (despite legacy URL) ↗
Manufacturer reference · reviewed 2026-09-20
