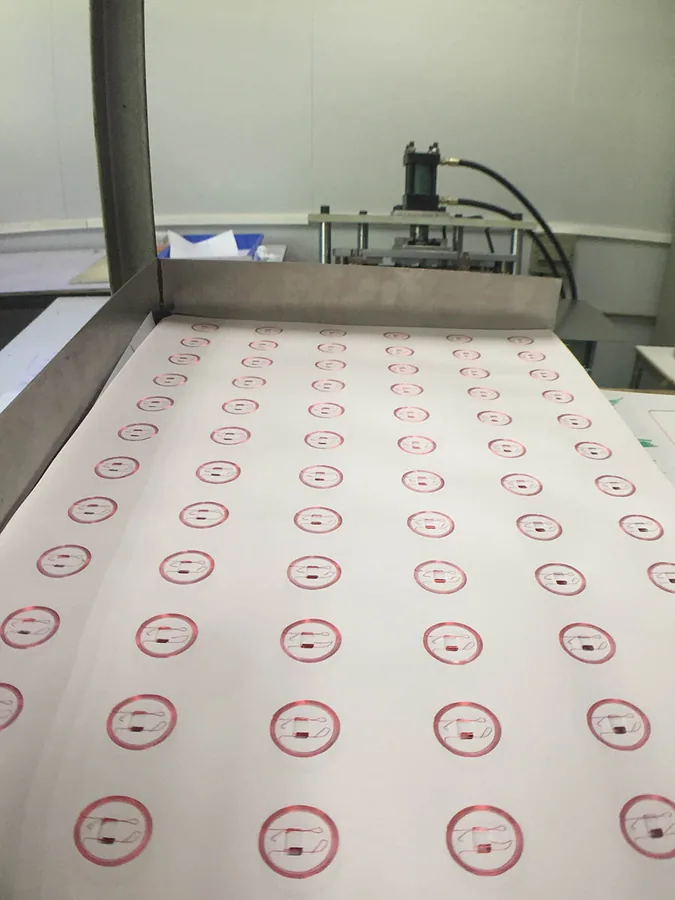

Custom-outline HF sheet
0.50 ± 0.02 mm reference stack
Final outline and antenna clearance by drawing. [1]
Card Inlay · RFIDAK
Irregular RFID Inlays for Small Formats
Irregular card inlays place a contactless antenna and chip within a non-standard outline for small cards, keychain shapes or encapsulated accessories. The published PVC reference is 0.50 ± 0.02 mm thick, with layout tailored to the final outline.
Updated September 24, 2026
- Substrate
- PVC
- Thickness reference
- 0.50 ± 0.02 mm; custom construction possible
- Published layout counts

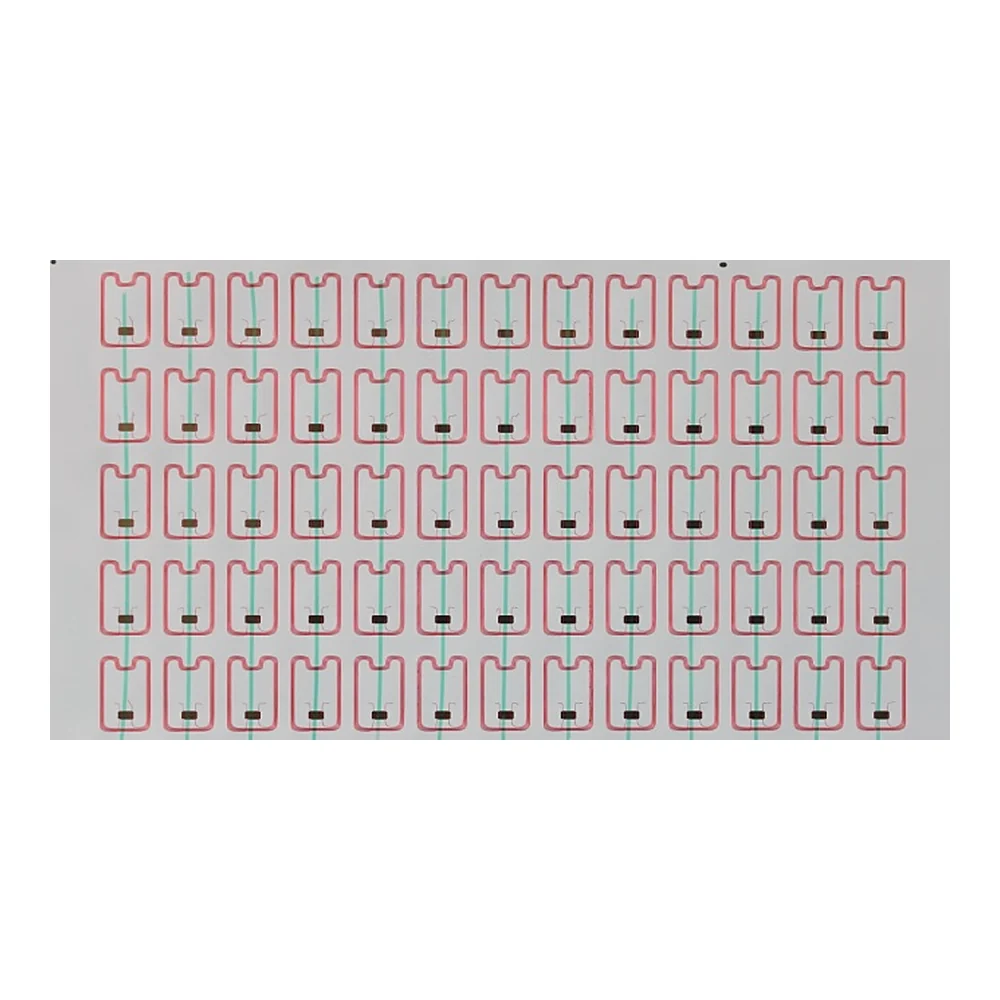

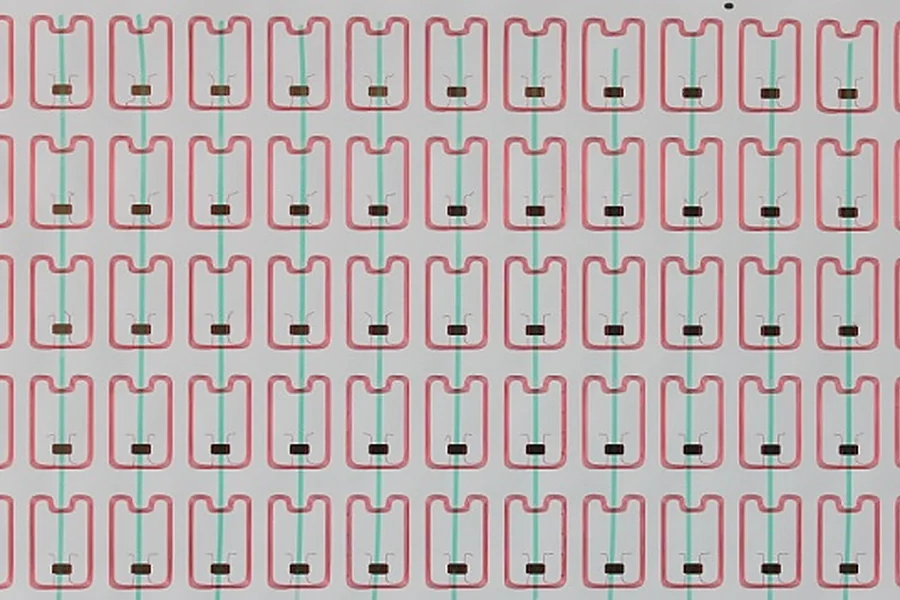

- 5 × 5, 3 × 8, 4 × 8, 5 × 8 or 4 × 10
Technical reference
Product specifications
Model-specific data and source scope are shown together.
- Substrate
- PVC [1]
- Thickness reference
- 0.50 ± 0.02 mm; custom construction possible [1]
- Published layout counts
- 5 × 5, 3 × 8, 4 × 8, 5 × 8 or 4 × 10 [1]
- Frequency alternatives
- 125 kHz LF, 13.56 MHz HF or regional UHF [1]
- HF antenna techniques
- Etched aluminum, pre-wound copper or implanted wire [1]
- Packing / storage reference
- 200 sheets per box; −20 to +50 °C [1]
Choose a reference
Models & configurations
Choose a model or format to include it in your quote or sample request.
Appearance & construction
Photos & drawings
Open a picture to inspect the original file. Dimensions are taken from the cited references.
Application & selection
Before choosing this product
Design around the antenna, not the silhouette
A decorative outline can cross the antenna path. Place the chip, connection and conductor inside the final cut line with a defined margin before laying out many positions on a sheet.
Small format versus full-size card
Reducing antenna area changes coupling. An IC that works well in a full-size card may need a different antenna and reader position when placed inside a small keychain or epoxy format.
Sources & documents
Technical references
Published specifications identify the reference model. They do not replace the final order drawing or a model-specific test report.
- Irregular inlay construction reference ↗
Manufacturer reference · reviewed 2026-09-20
Custom orders & samples
Request your configuration
Choose the reference, then add quantity, destination, chip or reader details and any artwork on the enquiry page.
