5 × 5 layout
305 × 460 mm
25 positions; margins and pitch follow the layout drawing. [1]
Card Inlay · RFIDAK
Prelam Inlay Sheets — Layout & Thickness
Standard prelam references include 3 × 8 sheets at 295 × 480 mm and 4 × 8 sheets at 391 × 520 mm. Select sheet dimensions, card count, thickness and antenna geometry separately for your lamination and punching line.
Updated September 24, 2026
- Materials
- PVC, PET, PETG or PC reference
- HF thickness choices
- 0.32 / 0.35 / 0.42 / 0.45 / 0.50 mm
- LF thickness choices
- 0.50 / 0.55 / 0.60 mm
Technical reference
Product specifications
Model-specific data and source scope are shown together.
- Materials
- PVC, PET, PETG or PC reference [1]
- HF thickness choices
- 0.32 / 0.35 / 0.42 / 0.45 / 0.50 mm [1]
- LF thickness choices
- 0.50 / 0.55 / 0.60 mm [1]
- Antenna-size references
- 40 × 60 mm; 47 × 78 mm [1]
- Antenna construction
- Wound copper for LF; wire or etched aluminum for HF; etched aluminum UHF reference [1]
- Packing reference
- 50 pieces per bag on the cited standard prelam table [1]
Choose a reference
Models & configurations
Choose a model or format to include it in your quote or sample request.
Appearance & construction

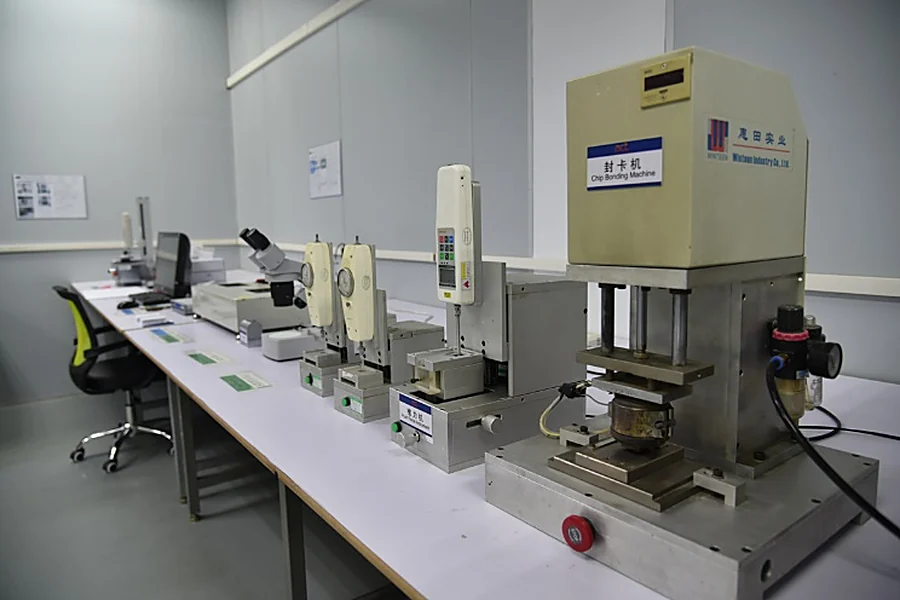

Photos & drawings
Open a picture to inspect the original file. Dimensions are taken from the cited references.
Application & selection
Before choosing this product
Sheet size and antenna size
A 40 × 60 mm antenna fits inside a card position; it is not the width and height of a multi-card sheet. Tooling needs the outer sheet size, pitch, trim margin and registration references together.
Prelam is not a self-adhesive wet inlay
A card prelam sheet is designed for further lamination and punching. A wet label inlay has an adhesive carrier. They are different supply constructions even when they contain the same IC family.
Sources & documents
Technical references
Published specifications identify the reference model. They do not replace the final order drawing or a model-specific test report.
- Standard prelam thickness and layout reference ↗
Manufacturer reference · reviewed 2026-09-20
Custom orders & samples
Request your configuration
Choose the reference, then add quantity, destination, chip or reader details and any artwork on the enquiry page.
