RFID Cards

NFC Epoxy Card

Need a compact RFID format for tight space or embedded placement?

MOQ
500 pcs

Stock SKU. Custom tooling from 2,000 pcs.

Lead time
7–15 days

Standard; rush possible on request.

Free sample
Ships in 1–3 days

Stock samples via DHL / FedEx.

Get Free Sample · 60-second form

Use this compact form factor when the RFID unit needs to fit inside a small product, tool, or molded part. Confirm available space, substrate, and required read distance before the sample plan is locked.

What buyers usually confirm first

swipe →

System Match

Will it work with the installed reader or lock?

Start from protocol and chip family, then confirm whether you need blank, printed, or pre-encoded supply.

Card Build

PVC, paper, wood, clamshell, or inlay-only?

Choose the card body around durability, branding, and whether you are embedding the inlay into your own format.

Approval Step

Do you need sample matching before a bulk order?

Most buyers validate reader behavior, print finish, and numbering logic before they lock a production run.

Free Sample (60s) Ask about compatibility WhatsApp

Spec Check

What to confirm in the card spec sheet

Protocol, chip family, card body, print finish, and encoding plan usually need to be locked before card samples are approved.

Product Name NFC Epoxy Card (Custom Shape Tag)
Card Material PVC (standard) or PET with optional UV-cured epoxy dome coating
Substrate Color White (printable), transparent, black, custom Pantone
Dimensions Custom shape — 50+ e x isting stock molds (coffee cup, flower, animal, star, heart, building, car, phone, gem, mascot, etc.) or bespoke artwork with custom die tooling
Thickness 0.76 mm (no dome, standard); 1.2-1.8 mm (with epoxy dome, depending on dome height)
Weight 2-8 g (shape + dome dependent)
Operating Frequency LF: 125KHz (ISO 11784/11785); HF: 13.56MHz (ISO/IEC 14443A, ISO/IEC 15693); dual-frequency optional
Compliance ISO 7810 ID-1 (if ISO CR-80 variant), ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092 (NFC Forum)
LF Chip Options TK4100 (read-only 64-bit), EM4200 / EM4305 (R/W 512-bit), T5577 (multi-protocol emulator), Hitag 1 / 2 / S
HF / NFC Chip Options NXP MIFARE Classic 1K / 4K (S50 / S70), Plus EV2 (2K / 4K), Ultralight EV1 / C / Nano, DESFire EV1 / EV2 / EV3 (2K / 4K / 8K), NTAG213 / 215 / 216, NTAG424 DNA (AES-128 SUN), Fudan FM11RF08
Memory 40-bit (EM4100 read-only) to 8 KB EEPROM (DESFire EV3)
Cryptography Open (NTAG213-216, EM4100), 3DES (Ultralight C), Crypto-1 (MIFARE Classic — legacy), AES-128 (DESFire EV3, NTAG424 DNA)
Read Range 2-5 cm (reader dependent)
Data Retention 10-20 years (chip specification)
Write Endurance 100,000 cycles (chip EEPROM)
Surface Print Full-color CMYK offset (4/4 both sides), UV-resistant inks, spot color / metallic optional, matte or gloss finish, epoxy dome overlay (glossy 3D)
Variable Data Laser-engraved sequential UID, digital inkjet per-card unique name / QR / number, CSV export of encoded UID range
Accessories Split-ring keyring (standard), polyester / nylon / cotton lanyard cord, beaded ball-chain, specialty clip / loop (optional)
Operating Temperature -40 deg C to +60 deg C
Storage Temperature -40 deg C to +70 deg C
Humidity 30-85% RH non-condensing
Durability 3-5 year daily-carry lifecycle (with epoxy dome); 2-3 years without dome
Packaging Individual poly bag (standard); bulk bag (cost-optimized); branded retail packaging (gift programs)
MOQ 500 pieces (stock mold evaluation); 2,000 pieces (custom print); 5,000 pieces (custom mold NRE amortization); 20,000+ for per-unit pricing floor
Lead Time 10-15 business days stock mold; 20-30 business days custom mold + print + encoding

Shortlist Logic

Why buyers keep this card format on the shortlist

These points usually matter when a project is balancing reader compatibility, print quality, and repeat-order consistency.

50+ existing die-cut molds plus custom shape production - fully customizable shapes beyond standard CR-80 for brand differentiation
Optional epoxy dome coating - creates premium glossy 3D surface that increases perceived card value and customer retention
10-year data retention with 100,000 read/write cycles - supports long-running loyalty, membership, and VIP programs without card replacement
Dual-frequency: LF 125KHz (ISO 11784/11785) and HF 13.56MHz (ISO/IEC 14443A, ISO/IEC 15693) - compatible with both legacy and NFC reader systems
Full-color CMYK printing with UV-resistant inks - maintains vibrant graphics through years of daily keychain carry and handling
Includes lanyard or keyring accessories - ready for immediate customer distribution without additional hardware sourcing

Use Cases

Where teams usually deploy this card format

These are the workflows where buyers most often compare this card against other credential options before they request samples.

Customer loyalty programs

unique shapes increase daily carry rates by 30-40% versus standard card formats, boosting repeat visit frequency

VIP and club membership

premium epoxy finish signals exclusivity for private clubs, wine societies, and members-only venues

Hotel and resort branded keycards

custom-shaped keychain cards guests keep as souvenirs, extending brand visibility post-stay

Event badges and VIP passes

custom die-cut NFC credentials for conferences, festivals, and corporate events

Gift card programs

creative shapes increase perceived gift value and redemption rates versus rectangular plastic cards

Brand marketing campaigns

NFC-enabled promotional tokens that link to digital experiences via smartphone tap

NFC Epoxy Card vs NFC Coin — How To Choose

Card-shape or coin-shape? Same chip, different mounting story

Both formats use epoxy dome encapsulation over an NFC inlay, both work with any iPhone or Android NFC reader, both survive water / sweat / UV. The physical difference is form factor — flat card that fits a wallet vs small coin that attaches to keys, bottles, or products. Pick form factor based on where the buyer will physically put the tag.

RFIDAK NFC epoxy card with domed clear resin encapsulation over full-color printed artwork — IP66 waterproof, CR80 credit-card size for wallet carry, premium tactile finish for brand loyalty programs Option A

NFC Epoxy Card (this product — flat, card-shape)

Flat, wallet-carryable, print on full face

Form factor
CR80 flat card (85 × 54 mm)
Thickness
1.5 – 2.0 mm (with dome)
Print area
Full card face (under dome)
Attachment
Wallet / lanyard hole optional
Weight
8 – 12 g
Unit price (MOQ 1K)
$0.95 – 1.85

Best for

  • Premium loyalty cards where the epoxy dome signals 'premium tier' to holder
  • Hotel resort all-inclusive credentials where card fits in guest wallet
  • Tech campaigns and conference badges worn on lanyards
  • Waterproof gym / pool credentials where flat-carry is preferred over keychain
RFIDAK NFC coin — round epoxy token 25-30 mm diameter with 3M adhesive backing or keyring hole, designed for product-attachment marketing campaigns and bottle-cap NFC triggers Option B

NFC Coin (sibling product — round token)

Round, small, stickable or keyring-mounted

Form factor
Round token (Ø 25 / 30 / 38 mm)
Thickness
3 – 5 mm
Print area
Circular face (full dome)
Attachment
3M adhesive back + keyring hole
Weight
3 – 6 g
Unit price (MOQ 1K)
$0.75 – 1.45

Best for

  • Product-side marketing — stick to bottles, packaging, retail displays
  • Home automation triggers on desks, door frames, key hooks
  • Small brand tokens in gift boxes, conference welcome bags
  • Keychain NFC tags where flat card wouldn't hang comfortably

Quick decision tip — If the tag lives in the customer's wallet or on a lanyard, go epoxy card (Option A). Card-shape is what wallets are designed to hold. If the tag sticks on a product, a door frame, a bottle, or hangs from a keychain, go NFC coin (Option B) — round tokens mount more versatile surfaces. Many brand campaigns actually ship both, with the card as the 'permanent keepsake' and the coin as the 'stickable action trigger'.

NFC Epoxy Card Types

1 Should I choose the NFC epoxy card for my brand program?

Yes — if you run a loyalty program, VIP / club membership, premium gift campaign, corporate marketing giveaway, or branded event credential where a uniquely shaped + premium-glossy credential earns noticeably higher daily-carry and retention than standard credit-card-format RFID. The The NFC epoxy card offers 50+ existing die-cut molds plus custom artwork tooling, optional epoxy dome coating for 3D glossy finish, LF + HF dual-frequency options, and full-color CMYK with UV-resistant inks.

Pick a different format if the credential must fit a standard ISO 7810 CR-80 card slot (use rfid-cards), needs to be worn on the wrist (use silicone wristband), or is single-use disposable (use paper card / wristband). Pick the epoxy card when the visual differentiation, tactile premium feel, and collectible keep-value are part of the brand strategy.

2 Spec decision matrix — premium branded NFC credential alternatives

Comparison across the 5 premium / collectible NFC credential classes brand marketers typically evaluate. Prices indicative at MOQ 5,000 pieces.

ClassShape flexibilityPremium finishChip tierBest fitUnit price
The NFC epoxy card50+ molds + customEpoxy dome + CMYKLF / HF / DESFire EV3Loyalty, VIP club, hotel branded, gift$0.85 – 2.40
Wood / bamboo NFC cardISO 7810 CR-80 + customNatural grain + laserLF / HF / DESFire EV3Eco-brand, luxury hotel, sustainable giveaway$1.40 – 3.80
Leather + metal NFC keyfobStandard teardrop / rect.Leather + gold / silver stampHF (Classic / DESFire)Hotel VIP, corporate exec, luxury brand$1.85 – 4.50

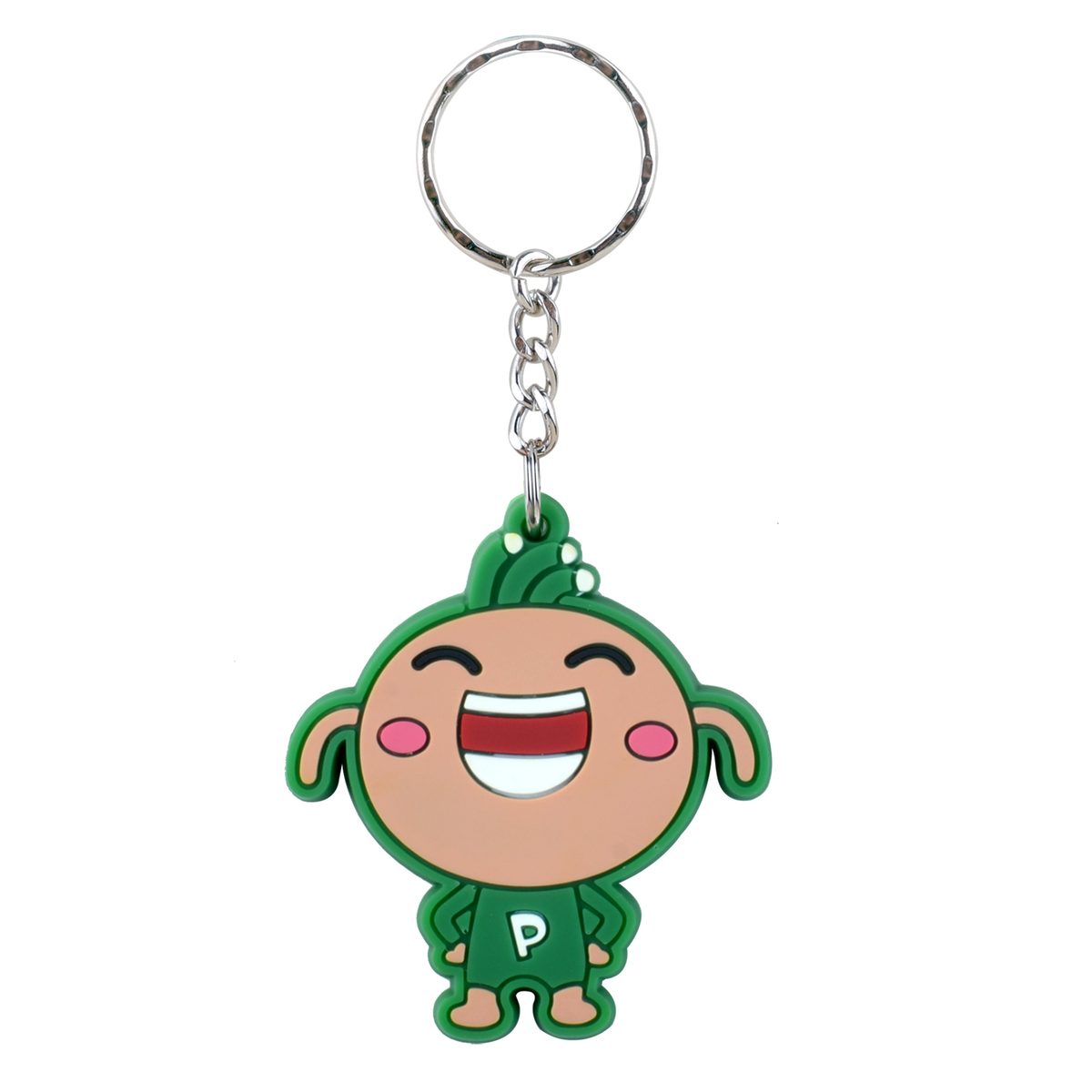

Soft PVC character keyfobCustom 2D / 3D moldedMulti-color moldedHF NFC (NTAG / Classic)Theme park mascot, anime, K-pop, kids brand$1.10 – 2.85
Standard PVC printed cardISO 7810 CR-80Full-color offsetAll LF / HF / UHFVolume credential, basic loyalty, ID badge$0.38 – 1.35

Verdict: epoxy card wins on shape flexibility + unit cost trade-off (more brand-distinctive than standard PVC at 2-3x the cost). Wood wins for eco / luxury. Leather / metal fob wins for hotel VIP + corporate exec. Soft PVC character wins for mascot / entertainment. Standard PVC wins on pure unit cost.

3 Typical deployment pattern - shaped loyalty keytags

Food-and-beverage loyalty programs replace wallet cards with shaped NFC keytags because a keychain credential is physically present at every visit. The shape itself — a brand-mark die-cut with an epoxy dome — is what earns the keychain spot, and an NFC tap is faster at pickup counters than opening an app for a QR scan.

Programs typically pilot one region with a stock mold before committing custom-mold tooling, then scale once tap-rate data justifies it. Both routes are supported: 50+ stock molds or custom die development.

4 Compatibility reference — shapes, chips, accessories, personalization

Verified compatibility across mold / shape catalogs, chip tier options, lanyard / keyring accessories, and personalization methods.

CategorySupportedNotes
Stock mold catalog50+ existing die-cut molds (coffee cup, flower, animal, star, heart, building, car, phone, gem shape, mascot)Full catalog PDF in documents section; add 2-3 weeks vs custom mold lead time
Custom mold developmentCustomer artwork converted to CNC steel die; MOQ 5,000 pieces for NRE amortizationNRE $350-2,400 depending on complexity; tooling lead time 15-25 business days
LF chip options (125KHz)TK4100 (read-only 64-bit), EM4200 (R/W 512-bit), EM4305, T5577 (multi-protocol), Hitag 1 / 2 / ST5577 for emulating legacy HID Prox / Indala / AWID
HF chip options (13.56MHz)NXP MIFARE Classic 1K / 4K (S50 / S70), Plus EV2, Ultralight EV1 / C / Nano, DESFire EV1 / EV2 / EV3 (2K / 4K / 8K), NTAG213 / 215 / 216, NTAG424 DNA, Fudan FM11RF08DESFire EV3 for secure loyalty; NTAG213 for NFC consumer tap; NTAG424 DNA for anti-counterfeit
Epoxy dome coatingClear UV-cured epoxy resin, 0.8-1.2 mm dome thickness; matte / glossy finish options+$0.15-0.40 per unit; recommended for premium / loyalty / VIP programs
Surface printFull-color CMYK offset (4/4 both sides), UV-resistant inks, spot color / metallic optional, photo qualityStandard finish matte or gloss; epoxy dome over printed surface protects graphics
Variable dataLaser-engraved sequential UID (no-fade), digital inkjet overprint for per-card unique name / number / QRIncluded at 5,000+ MOQ; matched UID CSV export for enrollment system import
AccessoriesKeyring (split ring standard), lanyard (polyester / nylon / cotton cord), chain (beaded / ball-chain), clip, loopIncluded in unit price; custom colors / lengths available
Loyalty / POS integrationsNCR Counterpoint, Oracle Simphony, Toast, Square, Shopify POS, Clover, Lightspeed, AlohaNFC tap read via most NFC-enabled POS terminals; barcode fallback recommended for legacy POS
Hotel lock systems (if used as keycard)Assa Abloy Saflok / VingCard, SALTO, Onity (Dormakaba), TESA, KabaUse DESFire EV3 chip for modern hotel secure access

5 Cost at volume — FAQ

How much does the NFC epoxy card cost at 5K pcs? Stock mold (50+ options) + NTAG213 + single-color CMYK + no epoxy dome: $0.78-1.15 per unit at MOQ 5,000. Epoxy dome finish: +$0.20-0.40. Custom mold: NRE $350-2,400 + per-unit premium $0.12-0.25 until volume amortization.

Volume brackets? MOQ 500 (stock mold, evaluation) = $1.85-2.75; MOQ 2,000 = $1.25-1.85; MOQ 5,000 = $0.78-1.15 (base); MOQ 20,000 = $0.55-0.85; MOQ 100,000 = $0.42-0.65.

Chip upgrade? NTAG213 (base): included. NTAG215 (504 bytes): +$0.04-0.08. NTAG216 (888 bytes): +$0.08-0.14. NTAG424 DNA (AES-128 SUN): +$0.45-0.75. MIFARE DESFire EV3 2K (AES-128): +$0.85-1.35. MIFARE Classic 1K: +$0.15-0.28. LF EM4305 R/W: +$0.12-0.22.

How should I compare against a standard PVC loyalty card? The per-card premium for a shaped epoxy keytag buys daily-carry presence: a credential on the keychain is available at every visit, while a wallet card often is not. Pilot one region, measure your own tap-rate difference, and let that decide the rollout.

Accessories cost? Split-ring (keyring): included. Polyester lanyard: +$0.08-0.15. Cotton / nylon cord: +$0.10-0.18. Beaded ball-chain: +$0.05-0.10. Specialty clip / loop: +$0.12-0.25.

Eco positioning? Epoxy resin is durable but not readily recyclable. For sustainable positioning (net-zero hotel programs, eco-brand marketing), switch to the RFID wood card (bamboo / wood substrate) at $1.40-3.80/unit.

6 Market context - why shaped credentials outperform flat cards

Loyalty operators consistently find that uniquely shaped, keychain-friendly NFC credentials get carried daily in a way wallet cards do not, and a credential that is physically present at every visit is the precondition for tap-based loyalty attribution. That carry-rate difference, not chip capability, is the main argument for shaped epoxy formats.

The same logic extends to gift programs and memberships where the credential doubles as merchandise.

Supplier Fit

Why buyers source NFC Epoxy Card from RFIDAK

Once the format is right, most teams still need confidence in manufacturing control, sample support, and repeat-order reliability.

ISO 9001

Quality-focused manufacturing and sample support for custom RFID projects.

Since 2008

RFID manufacturing experience across cards, tags, labels, wristbands and readers.

Free Samples

Test product compatibility before bulk purchasing and customization decisions.

Learn more about RFID technology | Browse all RFID Cards | Read our RFID blog

Next Reading

What to read before you approve card samples

Use these guides when you still need to confirm chip path, lock or reader match, and sourcing details before the sample batch is locked.

Buyer guide How to order custom RFID cards A sourcing guide covering samples, MOQ, QC and factory communication. Open guide Buyer guide Hotel RFID card guide Useful when the project involves lock compatibility, chip choice and hospitality printing. Open guide Buyer guide Mifare Classic vs DESFire Compare chip security and fit before finalizing a card specification. Open guide

Comparison Pages

Useful if you are still choosing between two directions

These head-to-head pages help buyers compare chip, frequency, material or format decisions before they lock a sample plan for this product.

Chip Comparison Hub Mifare Classic vs DESFire Buyer-focused comparison page for Mifare Classic vs DESFire covering security, memory, cost, migration paths, sample planning and... Credential Format Comparison RFID cards vs keyfobs Buyer-focused comparison page for RFID cards vs keyfobs covering user experience, printing, portability, durability and repeat... Chip Comparison Hub Mifare Plus vs DESFire Buyer-focused comparison page for Mifare Plus vs DESFire covering migration, security direction, infrastructure fit and long-term...

Commercial Fit

How buyers usually move this product from shortlist to sample

Most inquiry-ready visitors want to know whether this product matches their workflow, region and approval stage. These cues help them move faster without leaving the product page.

Access-control integrators

Usually comparing reader compatibility, security level and print consistency for recurring issuance.

Hotel and hospitality suppliers

Often focused on lock-system matching, guest branding and quick repeat orders for card replenishment.

Campus and membership programs

Typically need numbering logic, artwork approval and cards that support more than one workflow.

Quote Checklist

What to send us for a faster recommendation

  • Current reader, lock or software system you need the card to match.
  • Preferred chip family, security level and whether NFC phone interaction matters.
  • Artwork, numbering, magnetic stripe, QR code or encoding requirements.
  • Order quantity, target country and delivery timing for sampling or bulk production.
Send project details WhatsApp this product

Market Notes

Regional conversations often tied to this category

North America

Replacement access cards, office credentials and membership programs often start with a sample-first approval cycle.

Europe

Common requests include hotel key cards, premium finishes, eco-look materials and stronger chip security planning.

Middle East and Africa

Hospitality, residential compounds and visitor programs often prioritize durability, branding speed and dependable repeat supply.

More Ways To Source This

Order this by chip, format or region

These sourcing pages cover the chip-specific and market-specific buying details that often decide the final spec for this product.

Order this by chip & format

Before You Order

Procurement guides every RFID Cards buyer reads first

Five short reads on the procurement-side topics every B2B RFID buyer wants answered before signing a quote — MOQ thresholds, lead time reality, pricing transparency, sample policy, and how to audit a Chinese factory before your first order.

MOQ

What's the Minimum Order Quantity for RFID?

Read →

Lead Time

RFID Production Lead Time Realistic Timeline

Read →

Pricing

How Much Does Custom RFID Cost?

Read →

Samples

Are RFID Samples Free? Sample Policy Guide

Read →

Factory Audit

How to Audit a Chinese RFID Factory

Read →

Buyer Questions

Questions buyers usually ask before sample approval

These FAQs cover the points that usually come up between a first shortlist and a real sample or quote request.

What is the minimum order quantity (MOQ) for NFC Epoxy Card? +

For NFC Epoxy Card, the standard MOQ starts at 500 pieces on stock SKUs. Custom die-cut shapes, oversized inlays or specialty substrates (wood, metal) move MOQ to 2,000–5,000 pieces due to tooling. Exact MOQ and unit pricing are quoted per project once chip, customization and packaging are confirmed.

Does RFIDAK provide free samples of NFC Epoxy Card? +

Yes. Stock rfid cards samples of NFC Epoxy Card are typically free; we only ask buyers to cover DHL/FedEx express shipping. Samples ship in 1–3 business days after your order is confirmed and arrive in 2–5 days to most countries. Custom samples (new chip, new size, printed artwork) usually take 3–7 additional days.

What is the production lead time for NFC Epoxy Card? +

Standard NFC Epoxy Card orders ship in 7–15 business days after PO confirmation and artwork approval. Large runs (>100k units) or orders with complex encoding / custom molds may take 15–25 business days. Rush production is available on request for time-sensitive launches; confirm MOQ and artwork early to protect the timeline.

Can NFC Epoxy Card be customized for my brand or project? +

Yes. NFC Epoxy Card supports end-to-end customization: full-color CMYK / silk-screen / UV printing, laser engraving, serial numbering, custom chip encoding (UID write, NDEF, sector locking), custom shape / size (subject to tooling MOQ), and packaging. Share your artwork, chip requirement and quantity and we will return a spec sheet + price within 24 hours.

Is NFC Epoxy Card compatible with my existing reader or system? +

Compatibility depends on the frequency band (LF 125 kHz / HF 13.56 MHz / UHF 860–960 MHz) and chip family used by your reader or installed system. Send a photo of your current card / reader model and we will recommend the matching chip + test a sample before bulk order.

What certifications and quality control does RFIDAK apply to NFC Epoxy Card? +

RFIDAK operates under ISO 9001:2015 (Quality Management) and ISO 14001 (Environmental Management), audited by SGS. NFC Epoxy Card is subject to incoming material inspection, in-process QC at every lamination / bonding / encoding step, and 100% electrical performance testing before shipment. Products meet CE, FCC, RoHS and REACH as applicable by market. Full test reports are available on request for buyer audits.

Can NFC Epoxy Card be pre-encoded or printed with my artwork before shipment? +

Yes. NFC Epoxy Card can ship with UID range assignment, NDEF URL encoding (for NFC), sector-locked user data, serial numbering, and CMYK / silk-screen / UV printing of your artwork. Provide an AI/PDF artwork file at 300 dpi with 3 mm bleed and a chip-encoding spec; we return a digital proof for approval before production.

How does RFIDAK ship NFC Epoxy Card internationally? +

RFIDAK ships NFC Epoxy Card via DHL / FedEx / UPS (door-to-door, 3–5 days to most countries), air cargo (5–7 days for heavier orders), or sea freight (20–35 days for bulk over 500 kg). Standard Incoterms are EXW, FOB Shenzhen and DDP; choose based on customs clearance preferences. Commercial invoice, packing list and CoC / MSDS are included automatically.

How does RFIDAK handle repeat orders of NFC Epoxy Card? +

For repeat buyers, RFIDAK locks tooling, artwork and chip encoding on file so subsequent POs ship faster — typically 5–10 business days for stock chip types at previously-run quantities. Price is adjusted transparently per chip market rate and FX movement; we flag any chip shortage (e.g., DESFire EV3) before quotation so the project plan stays realistic.

What are the technical specifications of NFC Epoxy Card? +

Key NFC Epoxy Card specs: frequency LF: 125 kHz (ISO 11784/11785); HF: 13.56 MHz (ISO/IEC 14443A, ISO/IEC 15693); dual-frequency optional; dimensions Custom shape — 50+ existing stock molds (coffee cup, flower, animal, star, heart, building, car, phone, gem, mascot, etc.) or bespoke artwork with custom die tooling. A full technical datasheet including read range, chip memory map, IP / temperature rating and compliance certificates is available on request; attach your reader model and target environment so we can confirm suitability before quoting.

Get Free RFID Samples

Try before you buy. Request free samples of any RFID product from our 50+ SKU catalog. Samples shipped via DHL/FedEx within 1-3 business days worldwide.

Request Free Samples WhatsApp Us

Not ready to chat? Just drop your email and we'll send the RFIDAK product catalog (PDF).

We'll only use your email to send the catalog and reply to your inquiry.

WhatsApp Get a Quote
