30 × 30 mm outline
30 × 30 mm
Choose print, hole and chip layout. [1]
RFID Keyfob · RFIDAK
Epoxy RFID Keyfobs & Printed Tags
Epoxy RFID keyfobs place a printed or transparent transponder assembly under a resin surface. Published outline references include 30 × 30 mm, 25 × 40 mm and 85.5 × 54 mm; hole placement and finished thickness depend on the selected construction.
Updated September 24, 2026
- Published outlines
- 30 × 30 mm; 25 × 40 mm; 85.5 × 54 mm
- Surface materials
- PET / ABS / epoxy construction alternatives
- Frequency alternatives
- 125 kHz LF or 13.56 MHz HF
Technical reference
Product specifications
Model-specific data and source scope are shown together.
Choose a reference
Models & configurations
Choose a model or format to include it in your quote or sample request.
Appearance & construction
Photos & drawings
Open a picture to inspect the original file. Dimensions are taken from the cited references.
Application & selection
Before choosing this product
Clear or printed finish

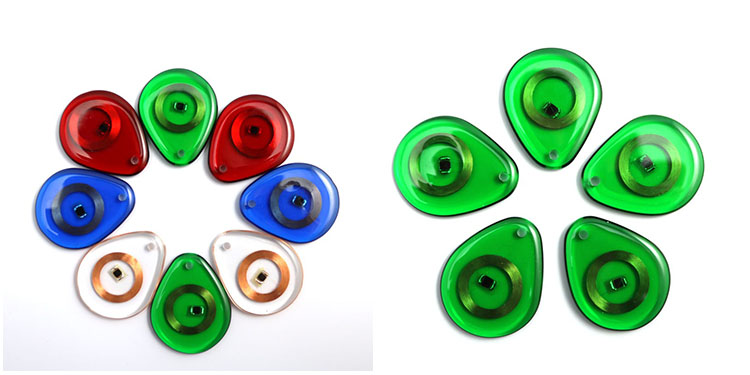

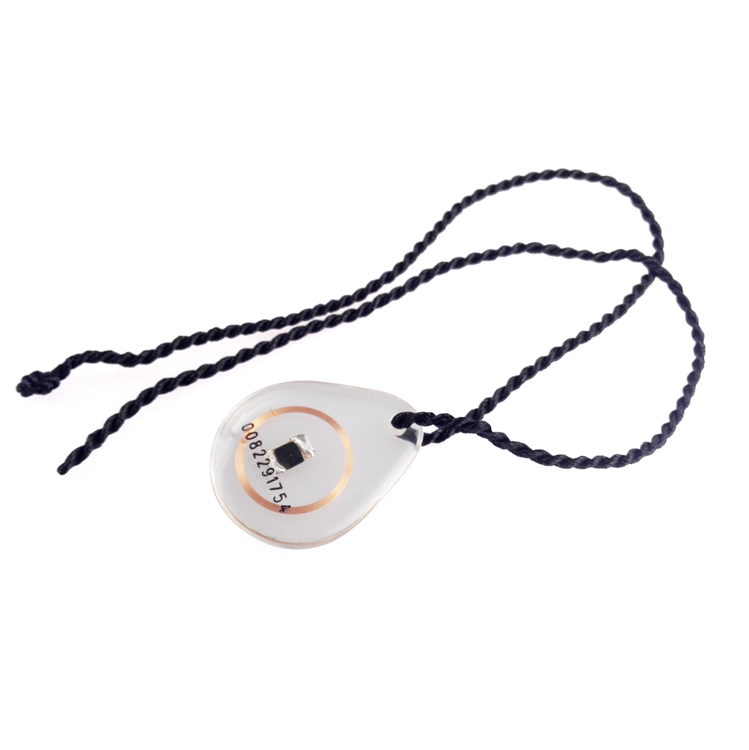

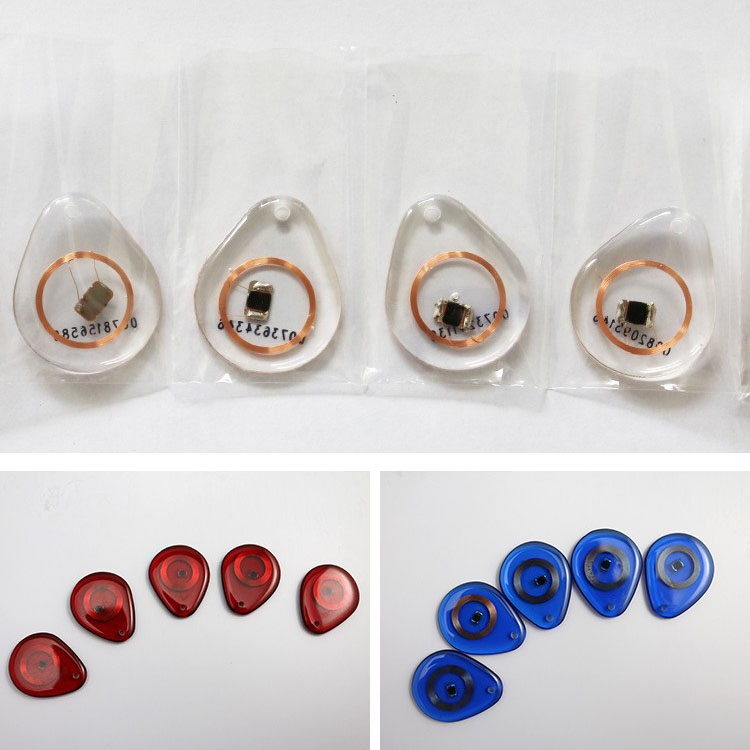

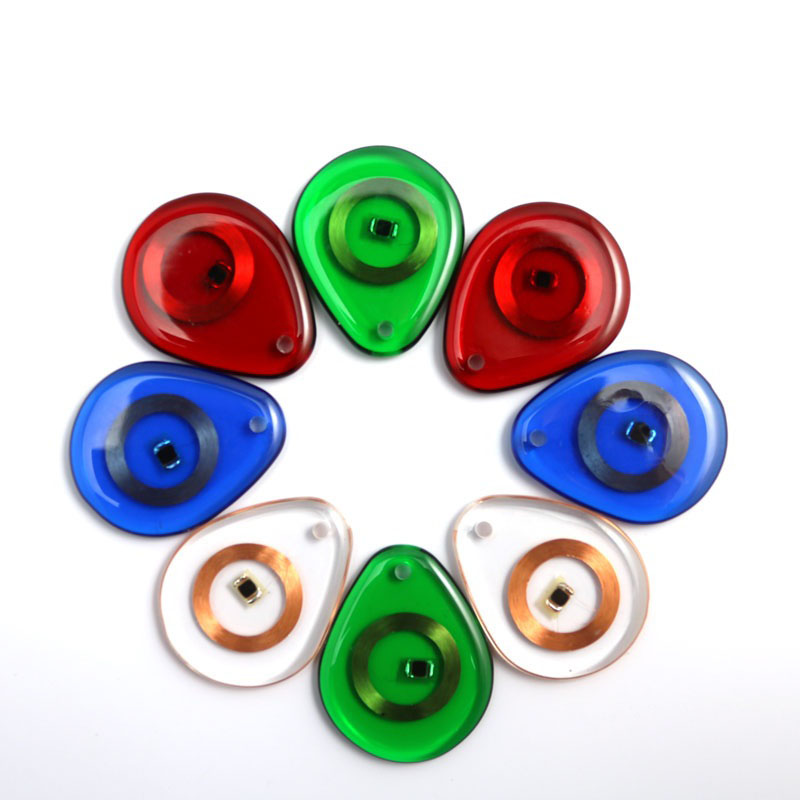

A clear format exposes the coil, while printed artwork hides it under a resin finish. Neither appearance identifies the IC. Place the keyring hole outside the active antenna and chip area.
Image and finished thickness
A domed resin profile is visible in a photo, but its height cannot be measured from that photo. Use the selected cross-section or sample when the tag must fit a recess or accessory.
Sources & documents
Technical references
Published specifications identify the reference model. They do not replace the final order drawing or a model-specific test report.
- Epoxy outline reference ↗
Manufacturer reference · reviewed 2026-09-20
Custom orders & samples
Request your configuration
Choose the reference, then add quantity, destination, chip or reader details and any artwork on the enquiry page.
