Adjustable wearable credentials

Nylon RFID Wristbands

Choose the closure. Match the chip.

Nylon RFID wristbands combine an adjustable textile strap with a separate RFID housing. Choose a side-release buckle, metal pin buckle or hook-and-loop style around how the wearer will fasten and remove the band. The five photographed models below distinguish the housing and closure; the RFID chip is selected for your reader or NFC application.

Photographed styles: 5 model references
Fastening choices: Buckle or hook-and-loop
Dimensioned examples: 280 × 20 mm / 265 × 16 mm

Dimensions describe the two pictured open assemblies, not the closed wrist range.

Compare the models Request samples

Download model & dimension reference (PDF) ↓

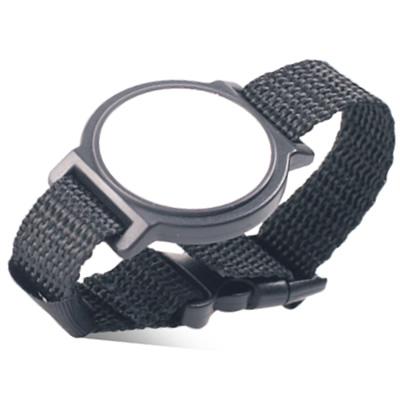

Black woven strap with a round white-faced RFID head and black plastic side-release buckle. — **WB501 · side-release buckle**Separate round RFID head and adjustable webbing · open full image ↗

Product specifications

The strap and the RFID head do different jobs.

The strap determines fit and removal. The housing carries the RFID assembly and provides a visible face for branding.

Construction: Nylon webbing with a separate plastic RFID head is the catalogue construction. The model photos show round and rectangular housing styles.
Fastening: WB501: side-release buckle. WB502: metal pin buckle. WB503 / WB504: hook-and-loop. WB506’s fastener is outside the pictured view.
Strap references: 280 mm × 20 mm hook-and-loop example; 265 mm × 16 mm side-release example. View the original dimension labels.
Head reference: 40 mm across × 37 mm high in both dimension images. The 40 mm line spans the housing including its side lugs.
RFID interface: LF or HF chip selection depends on the reader and intended data. Compare identifier and NFC memory options.

Catalogue · five photographed references

See the fastener before choosing the model.

Model codes identify the pictured strap and housing style. The selected chip, finished dimensions, color and printing are defined in the quotation and sample; the reference drawings below do not specify every model.

WB501

Round head · side-release buckle

Housing: Round face, two strap slots
Fastening: Plastic side-release buckle
Adjustment: Webbing length adjustment at the clasp

A squeeze-release clasp opens the band. The pictured round head has two strap slots; the strap and head are separate parts.

Quote WB501 →Request this sample

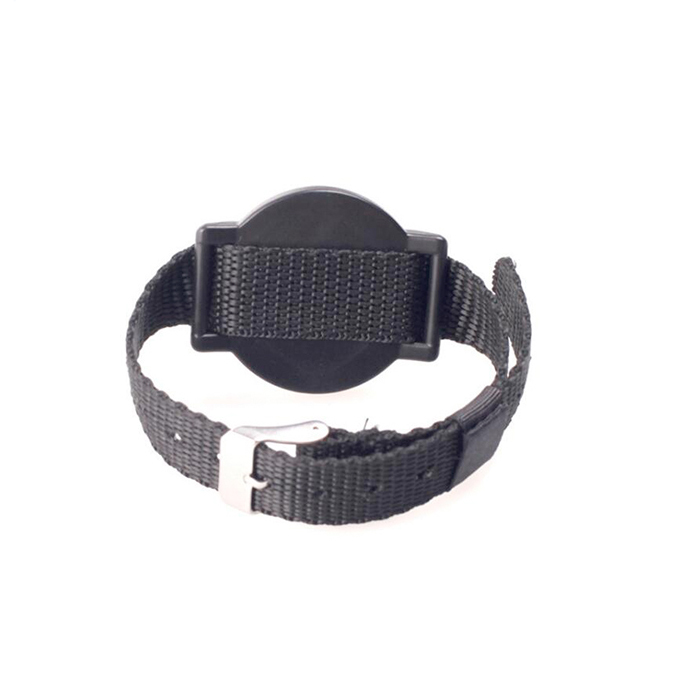

Rear of a black round RFID head threaded onto webbing, with a silver pin buckle and adjustment holes.

WB502

Round head · metal pin buckle

Housing: Round head; rear strap path shown
Fastening: Metal pin buckle with strap holes
Adjustment: Discrete adjustment holes

The rear photo shows webbing passing through the head slots. Fit is set by the pin and holes, rather than a side-release clasp.

Quote WB502 →Request this sample

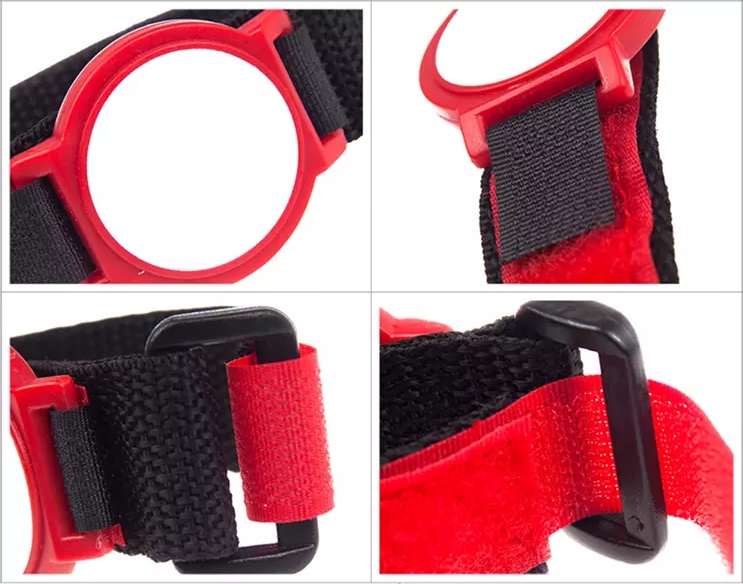

Four close-ups of a red round wristband head, black webbing, red hook-and-loop fastening and a rectangular return loop.

WB503

Round head · fold-back strap

Housing: Round face; red housing detail
Fastening: Hook-and-loop with plastic return loop
Adjustment: Overlap adjustment on the strap

Detail views show the folded fastening area and return loop. There is no snap fastener in the pictured assembly.

Quote WB503 →Request this sample

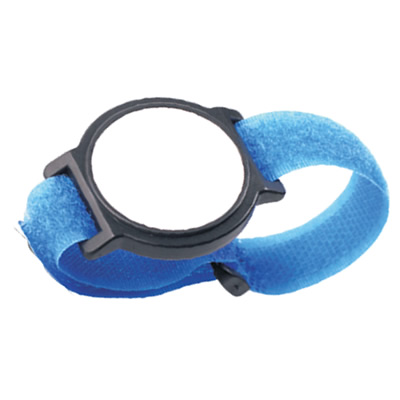

Blue hook-and-loop wristband with a round white-faced black RFID head and a folded strap end.

WB504

Round head · blue hook-and-loop strap

Housing: Round face; black housing
Fastening: Hook-and-loop strap
Adjustment: Overlap adjustment on the strap

The broad loop surface and overlapping strap end are visible. This photograph does not show a metal pin buckle.

Quote WB504 →Request this sample

Blue webbing wristband with a long rectangular blue RFID housing and RFID symbol.

WB506

Rectangular RFID housing

Housing: Elongated rectangular face
Fastening: Fastener is not visible in this view
Adjustment: Choose the required closure in the inquiry

An alternative housing shape with the strap entering at both ends. The small catalogue image documents the face, not the fastening mechanism.

Original catalogue image: 132 × 196 pixels. Shown without artificial enlargement.

Quote WB506 →Request this sample

Original dimension references

Two assemblies. Two different strap widths.

These dimensioned photographs show how the supplier measured each example. They do not print model codes or tolerances, so use them as drawing references when discussing your required size.

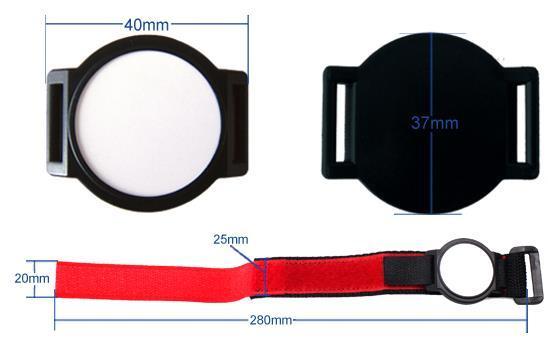

Original dimension photograph labelling a hook-and-loop wristband 280 mm long and 20 mm wide, with a housing 40 mm across and 37 mm high. — Hook-and-loop assembly
Pictured reference: 280 mm laid-flat length; 20 mm narrow strap width; head 40 mm across × 37 mm high. These are drawing labels, not a wrist-circumference range.
Source: Dimensioned photograph embedded in nylon wristband datasheet, page 2. Open original ↗

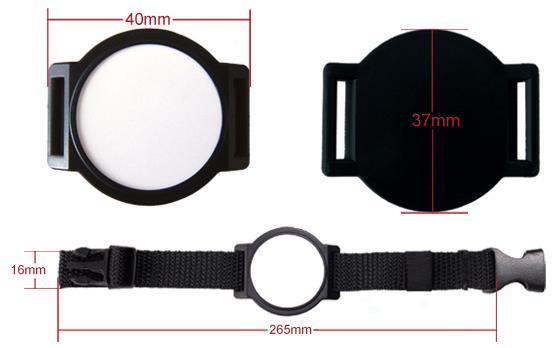

Original dimension photograph labelling a side-release wristband 265 mm long and 16 mm wide, with a housing 40 mm across and 37 mm high. — Side-release buckle assembly
Pictured reference: 265 mm laid-flat length; 16 mm strap width; head 40 mm across × 37 mm high. No model code or production tolerance is printed on the source image.
Source: Dimensioned photograph embedded in closure-variant datasheet, page 2. Open original ↗

Open length is not wrist circumference.

Hook-and-loop needs overlap to hold; a pin buckle uses a hole position; a side-release strap folds through the adjuster. Measure the wrist and the band’s closed internal circumference separately. For a mixed group, state your smallest and largest wrist measurements rather than ordering by open length alone.

RFID and NFC chip comparison

The same shape can hold different credentials.

These manufacturer data describe the IC, not the chip inside a pictured sample. Include your reader or system name when requesting a particular wristband.

LF identification and HF NFC chip reference comparison
Chip reference	Interface & data	Application fit
EM4200Manufacturer datasheet ↗	LF · 125 kHz credential systemsFactory-programmed read-only identifier	Existing LF readers expecting the selected encoding and identifier format. It is not a writable NFC URL tag.
NTAG213 / NTAG215 / NTAG216Manufacturer datasheet ↗	HF · 13.56 MHz · NFC Forum Type 2144 / 504 / 888 bytes user memory	NFC links and NDEF content. Formatting consumes some space. These chips do not automatically replace a different access-control credential.
MIFARE DESFire EV3Manufacturer datasheet ↗	HF · 13.56 MHz · ISO/IEC 14443 A2 / 4 / 8 / 16 kB variants	Compatible application-based access or closed-loop systems. Specify the capacity, application and keys with the system integrator.

Read distance depends on the assembled antenna, reader and position on the wrist. IC specifications do not establish a finished band’s read distance, water protection or wear life.

Technical documents

Keep the model and dimensions together.

The model reference PDF brings the five closure and housing descriptions together with the two dimensioned assembly examples.

Download nylon wristband reference ↓

PDF · version 16 September 2026 · dimensions apply to pictured examples

View the original dimension images

Hook-and-loop assembly ↗280 mm overall laid-flat length · 20 mm strap width · 40 × 37 mm head Side-release buckle assembly ↗265 mm overall laid-flat length · 16 mm strap width · 40 × 37 mm head

Archived drawing labels are retained as shown. Your approved sample and production drawing define the ordered assembly.

Custom orders & samples

Start with a model your wearers can use.

Select the pictured assembly and wearer group. On the next page, add the wrist-size limits, reader or chip, quantity, artwork and delivery country.

The quotation identifies the strap material, fitted dimensions, chip and printing, together with sample charges, minimum order and delivery schedule.

Sample ordering terms →

Nylon wristband questions

Does a 280 mm strap fit a 280 mm wrist?

No. The 280 mm label is the laid-flat length of the pictured hook-and-loop assembly. Folding the strap through its return loop and overlapping the fastening surfaces consumes part of that length. The usable wrist circumference must be measured with the band closed; it is not the same as the open strap length.

Can the strap be changed without replacing the RFID chip?

The photographed round housings have strap slots, and the WB502 rear view shows webbing threaded through the housing. A replacement strap needs to fit those slots and the fastening arrangement. The photo does not establish whether every finished assembly can be dismantled without tools or whether the RFID housing itself can be opened.

Are these adjustable wristbands non-transferable event tickets?

The illustrated side-release, pin-buckle and hook-and-loop closures can be opened. They do not provide the same physical restriction as a one-way event fastening. For admission that requires cutting the band to remove it, compare a fabric wristband with a suitable one-way lock and the intended ticketing controls.

Will the same wristband work with phones and an existing door reader?

That depends on the installed chip and reader protocol. NTAG21x supports NFC Type 2 content, EM4200 is a read-only LF identifier, and DESFire EV3 uses a different command and application system. A matching housing or operating frequency alone does not make credentials interchangeable.
