Molded credentials for worn use

RFID Silicone Wristbands

Compare the shape. Check the dimensions.

RFID silicone wristbands carry a contactless chip and antenna inside a molded wearable. This catalog includes closed loops, adjustable straps and buckle styles, plus a separate insert component. Compare each model’s drawing dimensions and nominal weight, then choose the chip and encoding accepted by your access reader, phone application or venue platform.

Wear formats
Closed loop · adjustable · buckle
Catalog references
WB-001–034, including an insert
Electronic options
LF / HF / UHF, selected by model
Browse 34 model codesRequest samples
Download model sizes & weights (PDF) ↓
Orange closed-loop silicone wristband with a wider flat front and a narrower rear band.
Closed-loop shapeSlip-on construction · select the opening size separately

Technical overview

The size on the drawing has a specific meaning.

A closed-loop opening, an open strap length and a finished wrist circumference are different measurements. Start with a model, then check fit on the intended wearers.

Body & shape

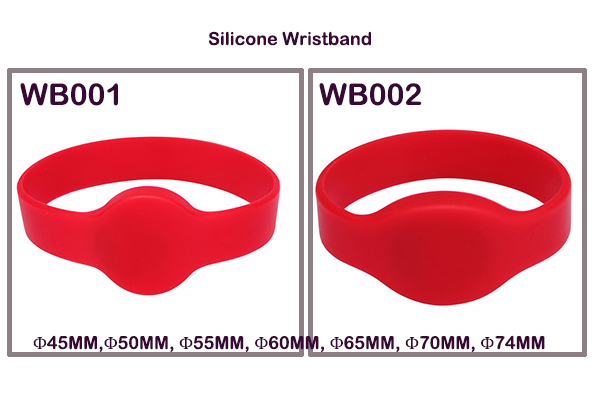

Molded silicone wristband references. WB-001–005 are closed-loop designs; the remaining wearable codes show adjustable or buckle constructions. WB-034 is a separate insert.
Closed-loop example
WB-003: opening across 55 / 65 / 75 mm; front width 17 mm; rear band width 13 mm. Nominal catalog weight 9 g.

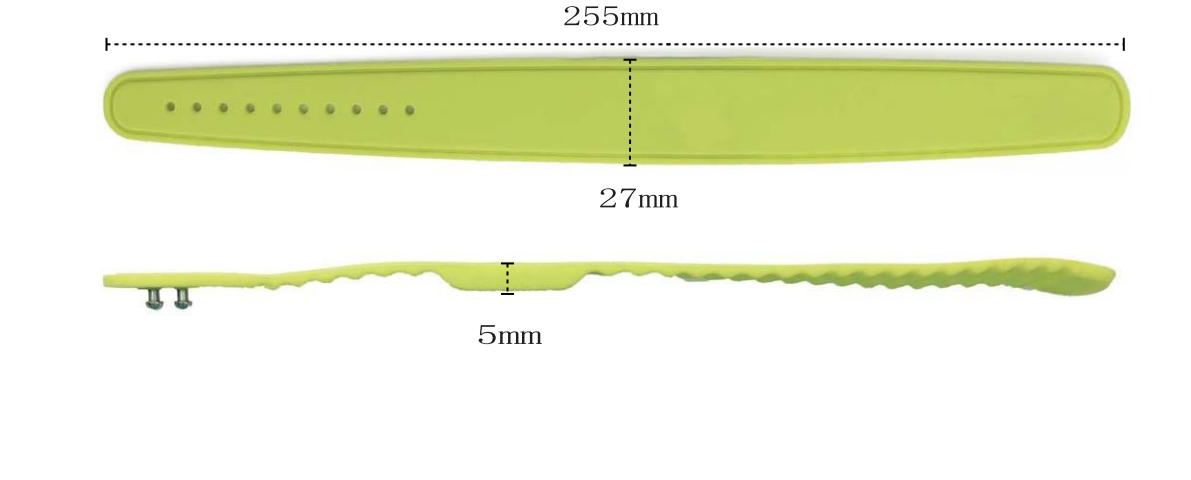

Adjustable example
WB-013 / WB-014: open length 255 mm, front width 27 mm, centre profile 5 mm. Nominal catalog weight 25 g.
Electronic assembly
Chip and antenna selected together for the model and reader. Catalog band options are LF / HF / UHF; WB-003 lists HF and WB-034 lists HF / UHF.
Surface marking
Catalog references include silkscreen, laser engraving and color filling. Confirm artwork, marked area and surface finish for the selected model.
Use conditions
Define water exposure, cleaning agents, temperature and reuse cycle for the complete assembly. Test criteria and any applicable reports are confirmed for that configuration.

Original dimension references

Four shapes. Four different fit decisions.

These are original catalog illustrations. Open a drawing to read it at full size. Every model in the catalog below has its own drawing link.

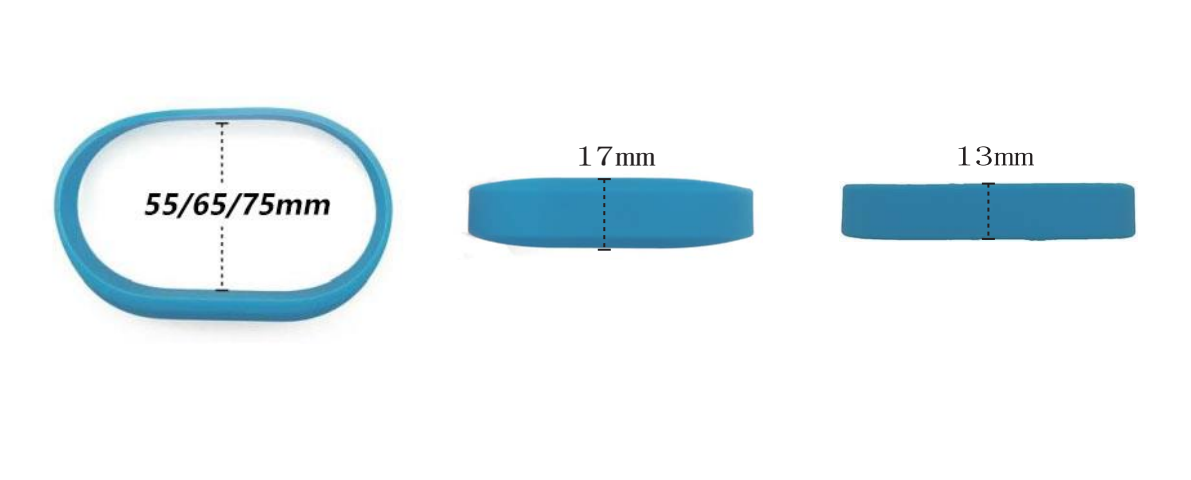

WB-003 original catalog dimension drawing. Opening across: 55 / 65 / 75 mm; front width: 17 mm; rear band width: 13 mm.

WB-003 Closed loop

Opening across: 55 / 65 / 75 mm; front width: 17 mm; rear band width: 13 mm.

Three opening sizes, plus separate front and rear widths. Check hand clearance as well as wrist fit.

Catalog p. 3 · drawing referenceRequest WB-003 sample →

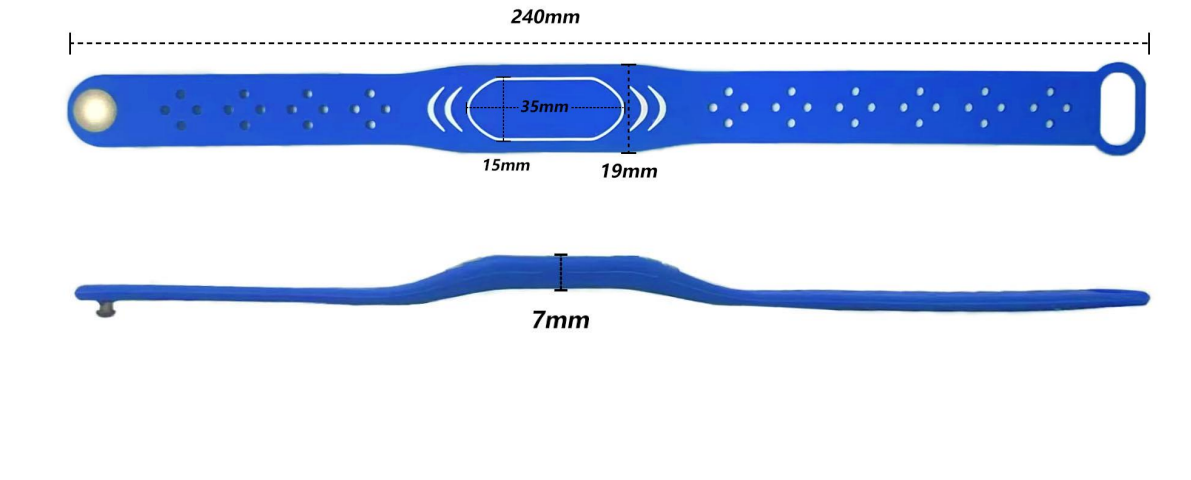

WB-006 original catalog dimension drawing. Overall length: 240 mm; widest section: 19 mm; centre profile: 7 mm; outlined face: 35 × 15 mm.

WB-006 Adjustable strap

Overall length: 240 mm; widest section: 19 mm; centre profile: 7 mm; outlined face: 35 × 15 mm.

The 240 mm annotation measures the open strap. The fitted circumference also depends on overlap and the selected hole.

Catalog p. 4 · drawing referenceRequest WB-006 sample →

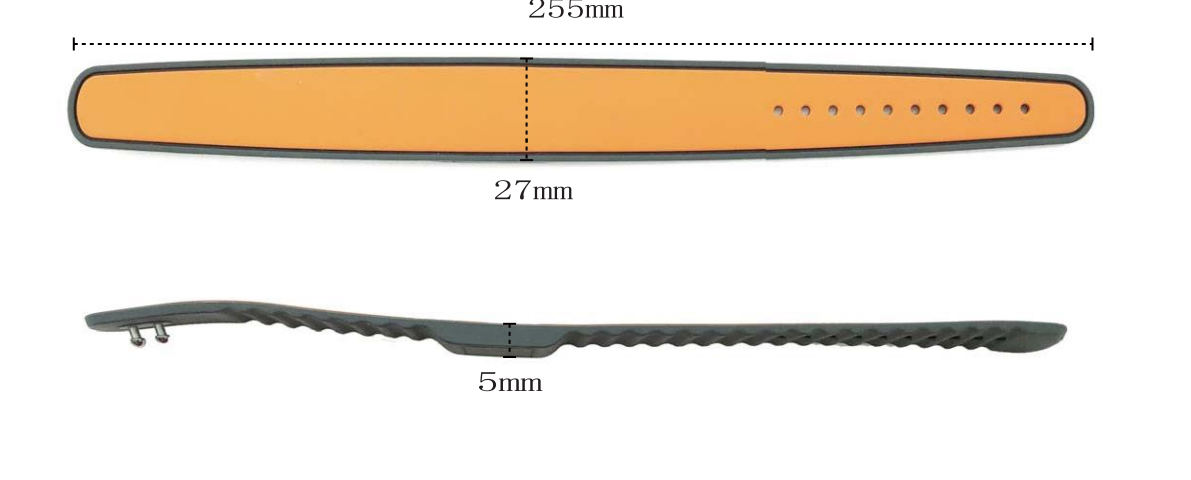

WB-013 original catalog dimension drawing. Overall length: 255 mm; front width: 27 mm; centre profile: 5 mm.

WB-013 Adjustable strap

Overall length: 255 mm; front width: 27 mm; centre profile: 5 mm.

A broader 27 mm face on a 255 mm open strap. Its 5 mm centre profile is a separate measurement from width.

Catalog p. 8 · drawing referenceRequest WB-013 sample →

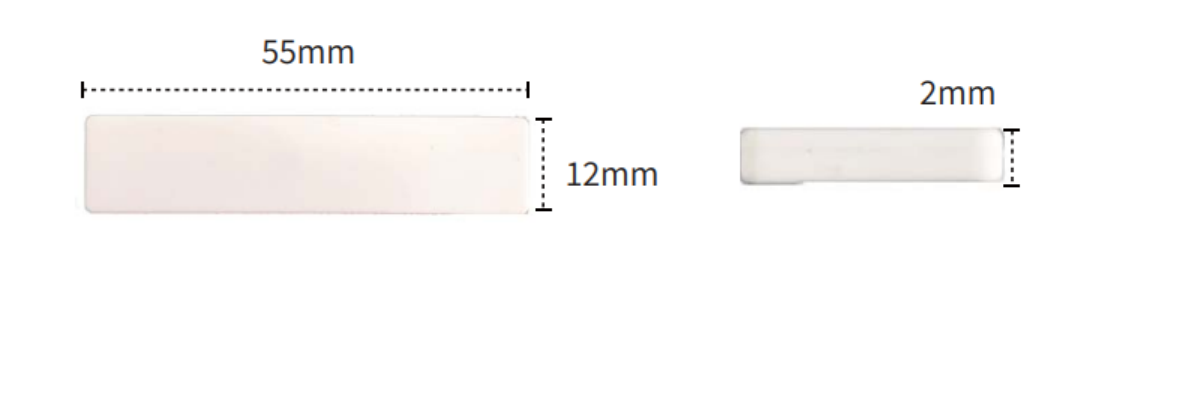

WB-034 original catalog dimension drawing. Insert length × width × thickness: 55 × 12 × 2 mm.

WB-034 Insert component

Insert length × width × thickness: 55 × 12 × 2 mm.

A 55 × 12 × 2 mm insert component. Include its intended holder or strap in the assembly specification.

Catalog p. 18 · drawing referenceRequest WB-034 sample →

Dimensions are source annotations, not a finished-size tolerance. The WB-034 illustration shows a separate insert; it does not include a complete strap or closure.

Reader & chip selection

Select the interface your application actually uses.

A model code identifies a shape. It does not identify an installed chip or guarantee a working hotel, admission or payment credential.

Silicone wristband reader and chip selection references
Electronic routeInterfaceWhat this means for your order
LF credential125 kHz reader systemMatch the installed access reader’s exact chip and identifier format. LF is a separate radio interface from phone NFC.
NTAG213 / 215 / 21613.56 MHz · NFC Type 2 · ISO/IEC 14443 Type ANXP specifies 144 / 504 / 888 bytes of user memory respectively. Useful for an NDEF phone-link project; the encoded record also needs space.NXP chip datasheet ↗
Reader-specified HF or UHFExact chip and application selected for the readerFor access, account identification or UHF gate use, provide the platform’s accepted chip and encoding. Confirm the antenna fits the chosen mold and test the finished band while worn.

A manufacturer’s IC specification is not a finished-band read-distance or water-resistance rating. Check the selected band on the intended reader or phones while worn.

View more strap, closure and marking photographs

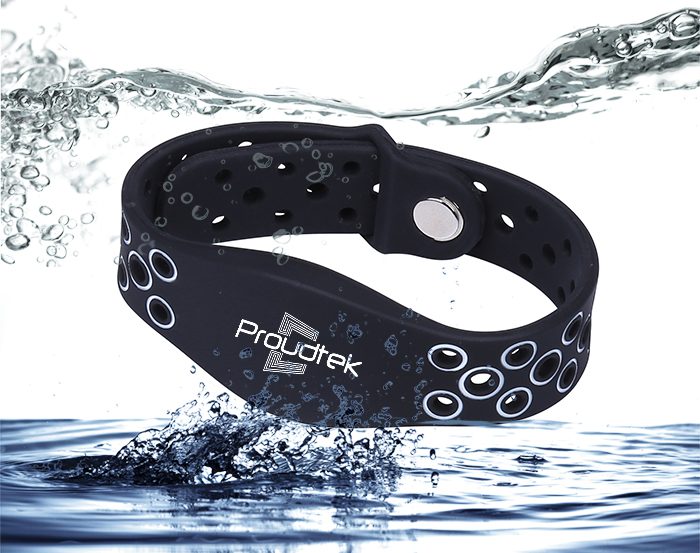

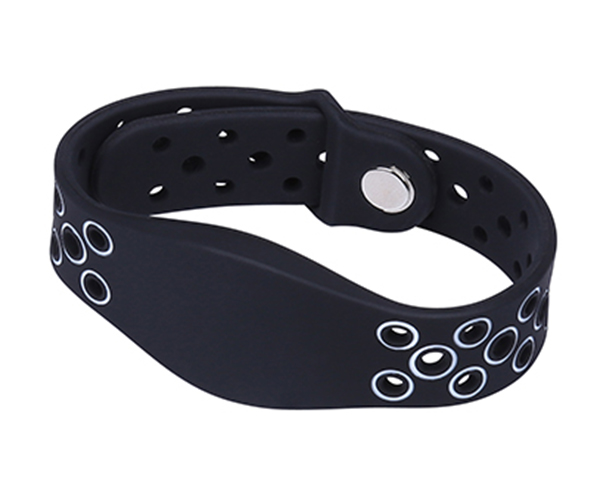

Black adjustable silicone band with rows of holes and a round metal snap.
Adjustable strap and snap detail · appearance reference

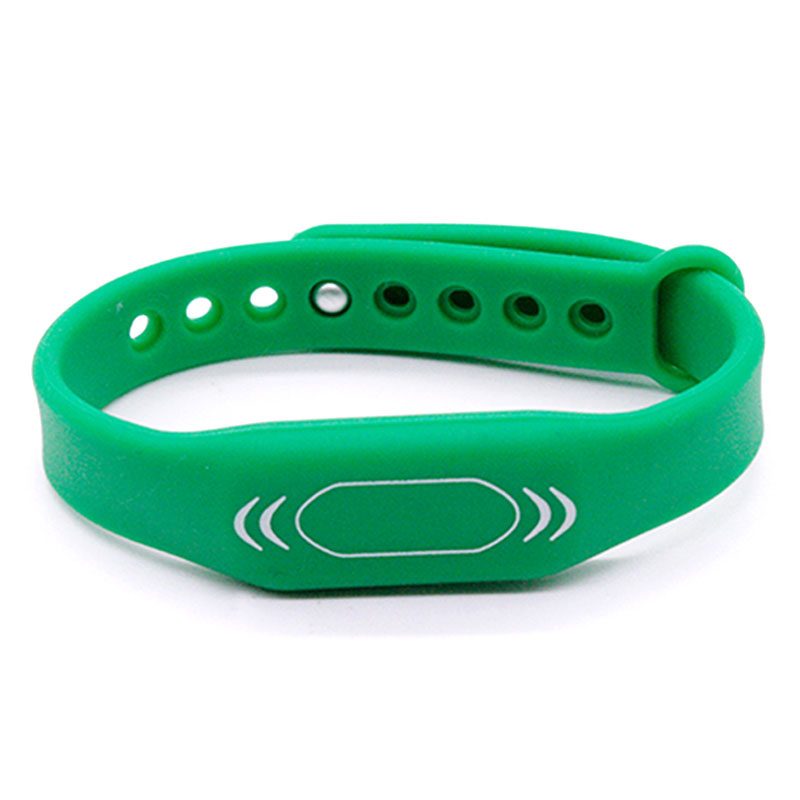

Green adjustable silicone wristband with a white outlined oval on its front.
Printed face on an adjustable band · appearance reference

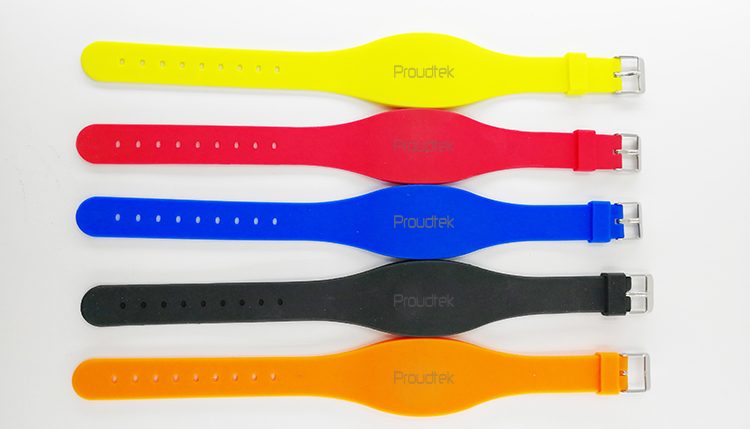

Five colored silicone straps laid open with metal buckles and Proudtek lettering.
Buckle construction and color examples · appearance reference

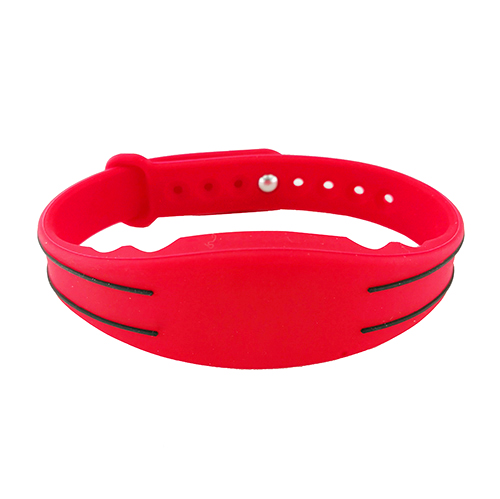

Red adjustable silicone wristband with dark inset lines on a broad front.
Contrasting front detail · appearance reference

Use the catalog code and its drawing to specify a model. These additional photographs illustrate construction and finish, and do not establish exact dimensions or a chip type.

Model reference document

Keep the dimensions with the model code.

Share the reviewed dimensions and nominal weights with your procurement and integration team. The reference identifies the source page for each of the 34 catalog codes.

Download model reference (PDF) ↓

Version 24 September 2026 · drawing references and model comparison

What the reference establishes

Readable model dimensions, pictured closure construction and nominal catalog weights. An opening measurement is kept separate from strap length, face width and profile thickness.

What the order drawing adds

Current size options and tolerances, fitted circumference, closure behavior, chip and antenna, marking position and any agreed environmental test criteria.

Source documents & scope

Original model catalog archive (retained for source review) — pages 2–18 supply the drawings and nominal weights. General temperature statements and certification symbols in that archive are not treated here as proof for every finished assembly.

NXP NTAG213 / 215 / 216 datasheet ↗ — chip interface and user-memory specifications.

Model dimensions & photographs

Silicone RFID Catalog: 34 Model Codes

Dimensions below reproduce readable catalog drawing annotations, and weights are nominal catalog values. They are selection references, not production tolerances or current stock availability. The order drawing defines the selected size, closure, chip assembly and finished weight. LF / HF / UHF labels describe catalog options; each band is supplied with an agreed electronic configuration.

Dimensions are in millimetres. “Opening across” is not wrist circumference; “overall length” means the open strap. WB-034 is an insert component.

Already picked a model? Continue to quote ↓

Custom orders & samples

Quote your selected wristband.

Choose a model from the catalog above, then tell us how it will be used. Not sure which model or chip fits? Leave the choices open and request a recommendation.

For an event order, review wristband costs and delivery planning and reader, chip and platform approval before ordering.

Start with what you know. Add quantity, destination and your contact details on the next page.

Your choices carry into an editable inquiry. Sample fees, setup, unit price, freight and timing are quoted for the selected configuration.

Silicone RFID wristband questions

Is a 255 mm strap suitable for a 255 mm wrist?

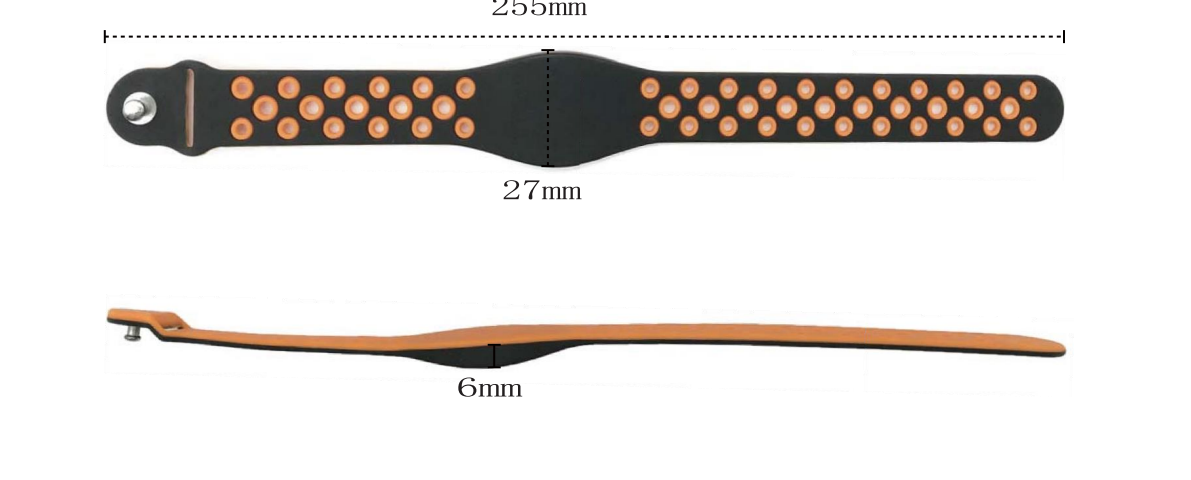

The 255 mm dimension shown for WB-013, WB-014 and WB-017 is the overall open-strap length. The fitted circumference is smaller because the strap overlaps at the closure. Confirm the hole positions, fastening allowance and fitted size range on the order drawing, then try a sample on representative wearers.

How do I choose a closed-loop silicone wristband size?

Use the opening dimension on the model drawing as a starting point. For example, WB-003 shows opening measurements of 55, 65 and 75 mm across the loop, a 17 mm front width and a 13 mm rear band width. These are not wrist circumferences. Check both passage over the hand and comfortable fit on the wrist with a physical sample.

Does every model support LF, HF and UHF at the same time?

No. Those labels are catalog frequency options, not a promise of three radios in one wristband. WB-003 is listed as HF; WB-034 is listed as HF / UHF. Confirm the exact chip, antenna and mold together. Reader compatibility, phone behavior and read distance depend on the finished configuration.

Can a silicone wristband operate our hotel locks or cashless platform?

Provide the exact lock or reader model, the platform’s accepted chip and its encoding requirements. The same radio frequency does not establish application compatibility. An NFC URL tag can open a phone link; a room-access or venue-account credential needs the appropriate system configuration. Test a personalized band on the actual platform before bulk approval.

Are the illustrated silicone bands waterproof or suitable for chlorine?

The catalog pictures and silicone material name do not establish an IP rating or chemical-resistance result for a finished assembly. Specify immersion depth and duration, water chemistry, cleaning agents and intended temperature. Request the applicable test evidence for the selected model and check RF operation, print and closure after the agreed exposure.
