µFR XL OEM NFC Reader: Antenna & Integration
Updated 2026-09-10
The µFR XL OEM is a Digital Logic 13.56 MHz reader board with a large antenna for installations needing a broader HF presentation area. Its advertised maximum distance is a test-dependent reference, not a guarantee through every surface or for stacked cards. The original XL OEM is legacy hardware, so confirm revision and current supply before integration.
- MOQ
- Confirm configuration
- Lead time
- Confirm availability
- Samples
- Evaluation quotation
Confirm the selected construction, chip and customization.
Preparation and transport are scheduled separately.
Confirm availability, fees, freight and applicable credits.
- Project quote after chip, construction, encoding and quantity review
- Approve the hardware, firmware and integration test before rollout
- Stock and custom sample terms are confirmed before shipment
Selection & sample approval
Will the large antenna work inside your finished installation?
Include with your request
- Required read position, distance and card antenna dimensions.
- Cover material, thickness, nearby metal and available board clearance.
- USB or serial connection, supply arrangement and connector pinout.
- Installed revision, sample quantity and lifecycle requirements.
Check on the sample
- Map reads across the intended presentation area with the final cover fitted.
- Test unintended reads outside the desired zone.
- Measure behavior with adjacent readers and nearby conductive parts.
Spec Check
What to confirm before hardware testing
Chip protocol, operating system, interface, and SDK expectations should all be clear before a reader sample is approved.
| Operating Frequency | 13.56 MHz (HF) |
| Evaluation and Order Quantity | Confirm the exact revision, evaluation unit and rollout quantity in the quotation |
| Conformity and Warranty | Request current documents and commercial terms covering the offered hardware revision |
| Radio Protocols | ISO/IEC 14443 A/B and ISO/IEC 18092; check firmware and command support |
| Read Range | Manufacturer reference up to 200 mm for suitable cards and test conditions; validate installed performance |
| Interface Options | USB, UART TTL or RS232 by variant; do not infer Ethernet capability |
| Mechanical Integration | Request the current board drawing, mounting positions and antenna keep-out area |
| Lifecycle | Legacy XL OEM; confirm replacement supply or current-generation alternative |
Shortlist Logic
Why this reader setup makes the shortlist
Hardware usually stays in consideration when it reduces integration risk and supports the exact credential workflow being planned.
Use Cases
Where teams usually use this reader setup
Deployment context helps determine whether this hardware belongs at a desk, in a kiosk, in a gate, or inside a device.
Existing XL OEM installation maintenance
Concealed HF read points after enclosure testing
Larger card-presentation areas in custom equipment
µFR XL OEM Long-Range NFC Reader Types
1Legacy model: confirm supply and migration before ordering
Digital Logic lists this model in its legacy product family and recommends evaluating its current generation for new projects. This page supports replacement and compatibility enquiries; it does not promise stock or continued production. Identify the installed revision and discuss migration before committing to a rollout. Read the manufacturer’s model reference and lifecycle notice.
2Define the read zone before choosing a maximum distance
State where an intended card should be detected and where it should remain unread. A larger antenna may change both useful coverage and unintended reads. Validate the final enclosure, surface, card angle and neighboring equipment, rather than sizing the installation from a single maximum-range number.
3An OEM board needs mechanical and electrical approval

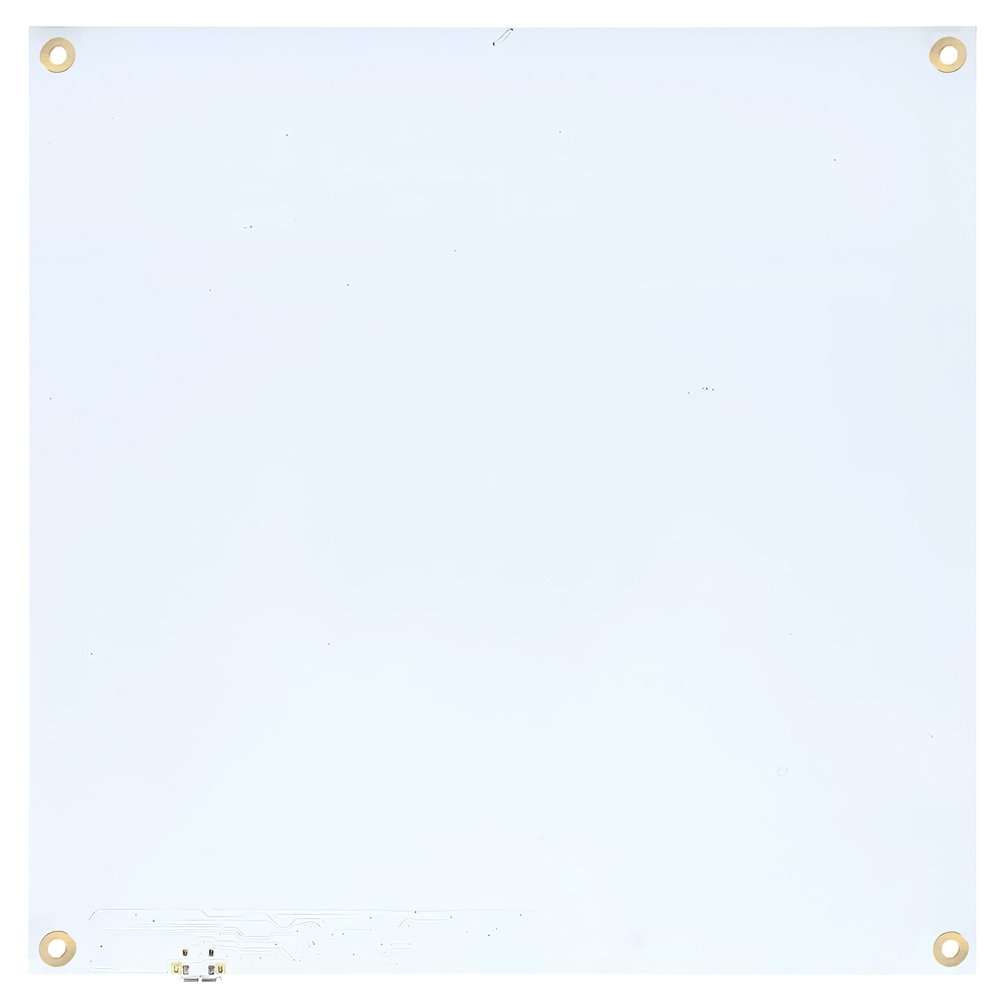

Obtain the revision-specific outline, hole pattern, connector orientation and power requirements. Reserve antenna clearance in the housing. A photograph of the board is useful for orientation, but is not a dimensioned manufacturing drawing or an approval of operation behind metal.
How Ordering Works
From inquiry to delivered µfr xl oem long-range nfc reader in four steps
Agree the configuration, evaluation and release conditions for this order before planning a rollout.
- 1After spec review
Send your inquiry
Share quantity, chip and application — or send the configuration straight from the estimate above. We reply with an exact quote and a chip / format recommendation.
- 2Terms confirmed
Evaluate the reader and software
Quote an evaluation unit with the required cables, accessories and documentation. Run the intended command with your own card and host application.
- 3You control the clock
Approve the tested revision
Record hardware and firmware versions, host driver or library, card type, command results and recovery behavior. Approval applies to that tested combination.
- 4Confirm current supply
Production & delivery
Confirm availability, quantity, configuration work, accessories, warranty and shipment release in the offer. Carrier transit and destination clearance are planned separately.
Details in writing:sample policy ·shipping & Incoterms ·quality control process
Supplier Fit
Why buyers source µFR XL OEM Long-Range NFC Reader from RFIDAK
Once the format is right, most teams still need confidence in manufacturing control, sample support, and repeat-order reliability.
Company management-system scope and finished-product evidence are different. Review the certification scope.
RFID sourcing, specification review and production coordination with partner lines.
Test compatibility before bulk approval; stock and custom sample terms follow the published sample policy.
Next Reading
What to read before reader hardware testing
Use these references when protocol fit, interface choice, and reader workflow still need to be validated before sampling.
Comparison Pages
Useful if you are still choosing between two directions
These head-to-head pages help buyers compare chip, frequency, material or format decisions before they lock a sample plan for this product.
Commercial Fit
How buyers usually move this product from shortlist to sample
Most inquiry-ready visitors want to know whether this product matches their workflow, region and approval stage. These cues help them move faster without leaving the product page.
Quote Checklist
What to send us for a faster recommendation
- Exact card or tag chip, protocol and the operation your application must perform; use authorized non-sensitive test data.
- Host OS and architecture, application environment and required driver, API, HID or virtual-COM behavior.
- Current hardware revision, firmware and connector if replacing an installed reader; include enclosure and power constraints.
- Evaluation quantity, rollout quantity, integration deadline, destination and any revision-specific documentation requirements.
Market Notes
Regional conversations often tied to this category
Nearby Options
Compare nearby reader setups before testing starts
Teams often keep a few hardware paths open until interface, deployment style, and credential support are all clear.
RFID Readers
µFR Nano NFC Reader
Compare this option if interface, deployment style, or encoding support may change the better hardware fit.
Compare this option
RFID Readers
µFR Classic CS NFC Reader
Compare this option if interface, deployment style, or encoding support may change the better hardware fit.
Compare this option
RFID Readers
RFID Reader Writer
Compare this option if interface, deployment style, or encoding support may change the better hardware fit.
Compare this optionBefore You Order
Procurement guides every RFID Readers buyer reads first
Five short reads on the procurement-side topics every B2B RFID buyer wants answered before signing a quote — MOQ thresholds, lead time reality, pricing transparency, sample policy, and how to audit a Chinese factory before your first order.
Buyer Questions
Questions buyers usually ask before sample approval
These FAQs cover the points that usually come up between a first shortlist and a real sample or quote request.
Does the 200 mm reference mean every card reads at that distance?+
No. Card antenna, orientation, power, cover and surrounding materials change the read zone. Validate the required distance and unintended-read boundary with the exact installation and sample cards.
What quantity and specifications are needed to quote µFR XL OEM Long-Range NFC Reader?+
The minimum order is confirmed for the selected configuration. Specify the hardware revision, interface, accessories, evaluation quantity and rollout quantity. Include the destination and required date so the offer can identify setup, packing and freight separately.
Can I evaluate µFR XL OEM Long-Range NFC Reader before a bulk order?+
Request a quotation for the exact evaluation unit, accessories and software requirements. Confirm current supply and test your own cards and host application before approving a rollout. A free-stock-tag allowance does not establish free reader hardware.
How is the lead time for µFR XL OEM Long-Range NFC Reader confirmed?+
Request the schedule for the exact configuration and quantity. Hardware availability, revision and any configuration work must be confirmed before release. Preparation, carrier transit and destination clearance are separate; confirm the requested arrival date in the quotation.
How do I check µFR XL OEM Long-Range NFC Reader compatibility?+
Confirm the card protocol, host interface, firmware, driver or SDK and the actual command required. Reading an identifier does not establish support for writing or an encrypted application. Validate a representative sample in the intended installation.
What customization and evidence should I request for µFR XL OEM Long-Range NFC Reader?+
Confirm enclosure or OEM-board options, connectors, firmware configuration and the integration documents for the offered revision. Request the applicable model-specific conformity evidence and warranty terms. Component or company certificates do not establish approval of a finished reader or payment system.
How is international delivery of µFR XL OEM Long-Range NFC Reader quoted?+
Provide the destination, quantity and packing requirement. Agree the transport mode, named place or port, Incoterms version, importer, insurance and required documents before shipment. Freight cost and risk transfer can occur at different points. Refer to the shipping and Incoterms page for the quotation checklist; no single transit time applies to every destination.
